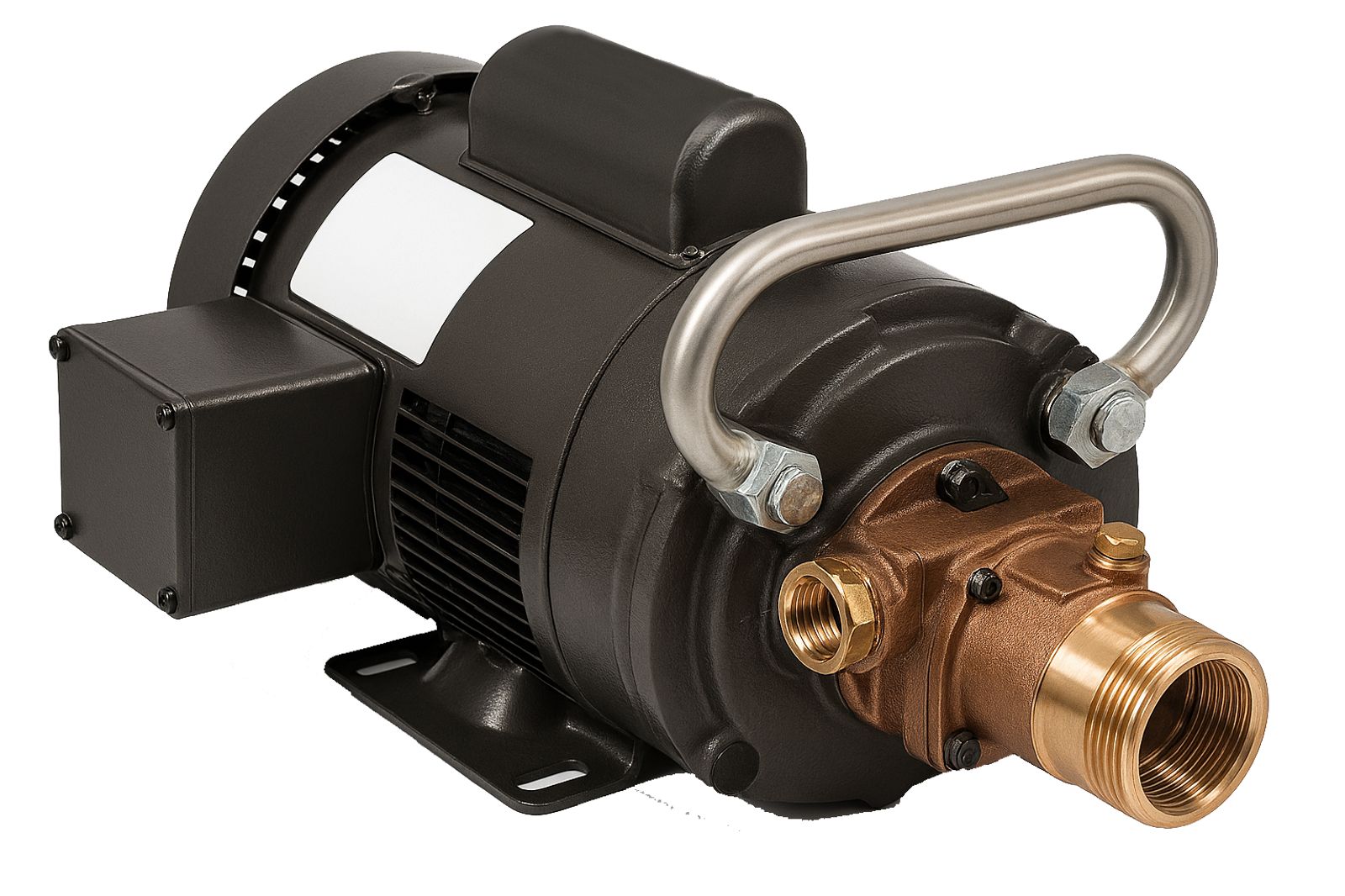

214M | Bronze Close Coupled Flexible Impeller Pump

The Bronze Macerator Rubber Impeller Pump Model 214M is a robust and efficient solution designed for sewage transfer and disposal. Constructed with all-bronze materials, this pump is highly resistant to corrosion, ensuring long-lasting performance. It features a high-torque capacitor start motor and a neoprene impeller, making it ideal for handling various maceratable solids. This pump is perfect for marine, RV, and industrial applications where reliable waste management is crucial.

Advantages

Durability: All-bronze construction ensures long-lasting performance even in harsh environments.

Efficiency: High-torque motor and efficient impeller design provide reliable and powerful operation.

Versatility: Suitable for a wide range of applications, from marine to industrial settings.

Ease of Maintenance: Easily replaceable components reduce downtime and maintenance costs.

Safety: Features like the motor shaft slinger and three-conductor motor cord enhance operational safety.

All-Bronze Construction:
Ensures durability and corrosion resistance, extending the pump's lifespan.

Large Vent Openings:
Separate the pump and motor, preventing overheating and ensuring efficient operation.

Stainless Steel Motor Shaft:
Provides strength and resistance to wear and tear.

Motor Shaft Slinger:
Protects motor bearings from contaminants, enhancing reliability.

Three-Conductor Motor Cord:
Offers safe and efficient electrical connections.

Neoprene Impeller:
Prevents seizing and motor overload, ensuring smooth operation.

Optional Buna Impeller:
Available for handling oil-contaminated water and kerosene.

Easy Replacement:
Macerator wheel and impeller can be easily replaced, reducing maintenance time.

High Torque Capacitor Start Motor:
Provides powerful and reliable performance for demanding applications.

Pipe Size	Inlet: 1-1/2” Outlet: 3/8” and 3/4” garden hose
Max Head	69 feet (21 m) / 30 PSIG (2 BAR)
Capacity	Up to 12.5 GPM (2.83 m³/h)
Maximum Suction Lift	Up to 4 feet (1.2 m) under ideal conditions
Materials	Bronze construction with stainless steel motor shaft
Temperature Range	40°F to 140°F (4 to 60 °C)
Motor	1/3 HP (0.24 kW) TEFC (Totally Enclosed Fan Cooled) motor
Impeller Material	Neoprene (optional Buna impeller available for specific applications)

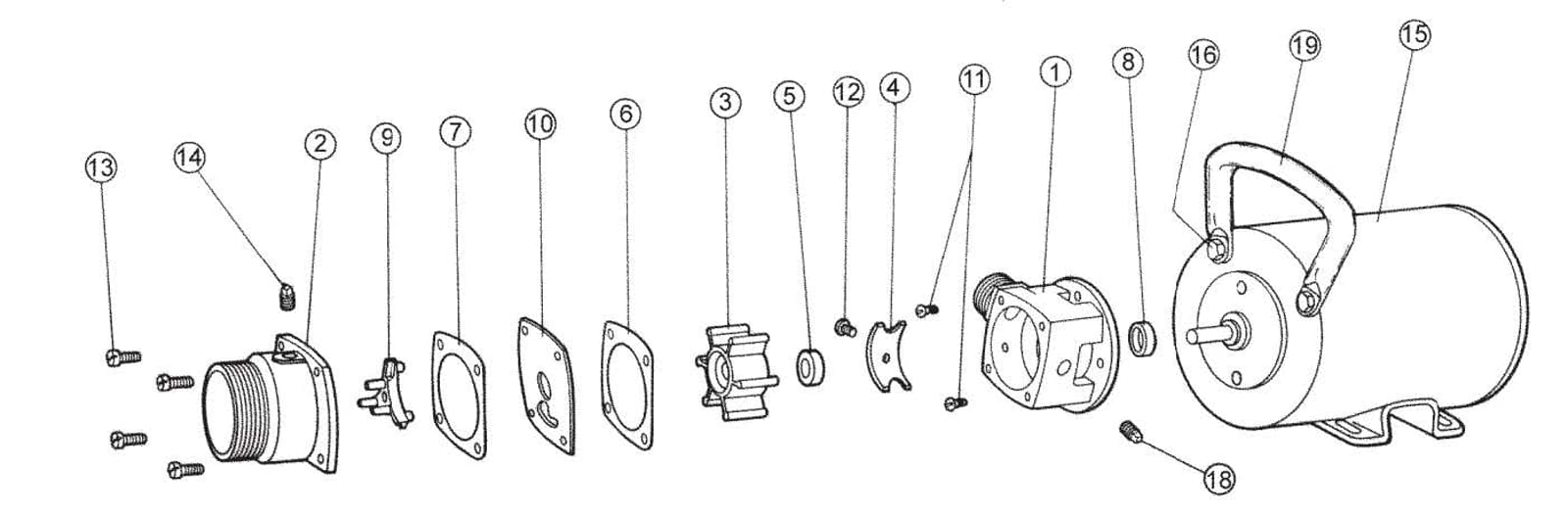

Item	Part Name	Quantity	OB214M	OB214M-F35
1	Body	Qty. 1	OB7454	OB7454
2	Cover	Qty. 1	OB7446	OB7446
3*	Impeller	Qty. 1	OB6593	OB6593
4	Cam	Qty. 1	OB6592	OB6592
5*	Lip Seal	Qty. 1	OB5007	OB5007
6*	Gasket	Qty. 1	OB7547	OB7547
7*	Gasket	Qty. 1	OB7020	OB7020
8	Slinger	Qty. 1	OB6757	OB6757
9	Wheel	Qty. 1	OB7442	OB7442
10	Plate	Qty. 1	OB7089	OB7089
11	Screw	Qty. 2	OB2371	OB2371
12	Screw	Qty. 1	OB7300-41	OB7300-41
13	Screw	Qty. 4	OB6074	OB6074
14	Plug	Qty. 1	OB7043	OB7043
15	Motor	Qty. 1	--	OB7429
16	Screw	Qty. 2	--	OB5411
17**	Cord	Qty. 1	--	OB6761
18	Plug	Qty. 1	OB6052	OB6052
19	Handle	Qty. 1	--	OB9897
20**	Washer	Qty. 2	OB5656	OB5656
21**	Terminal Spade	Qty. 1	--	OB7297
22**	Wire Nut Orange	Qty. 2	--	OB9850
23**	Wire Nut Yellow	Qty. 1	--	OB9857
-	Repair Kit	-	OB10938	OB10938

* Repair Kit contains items 3, 5, 6 & 7.

** Items not shown.
