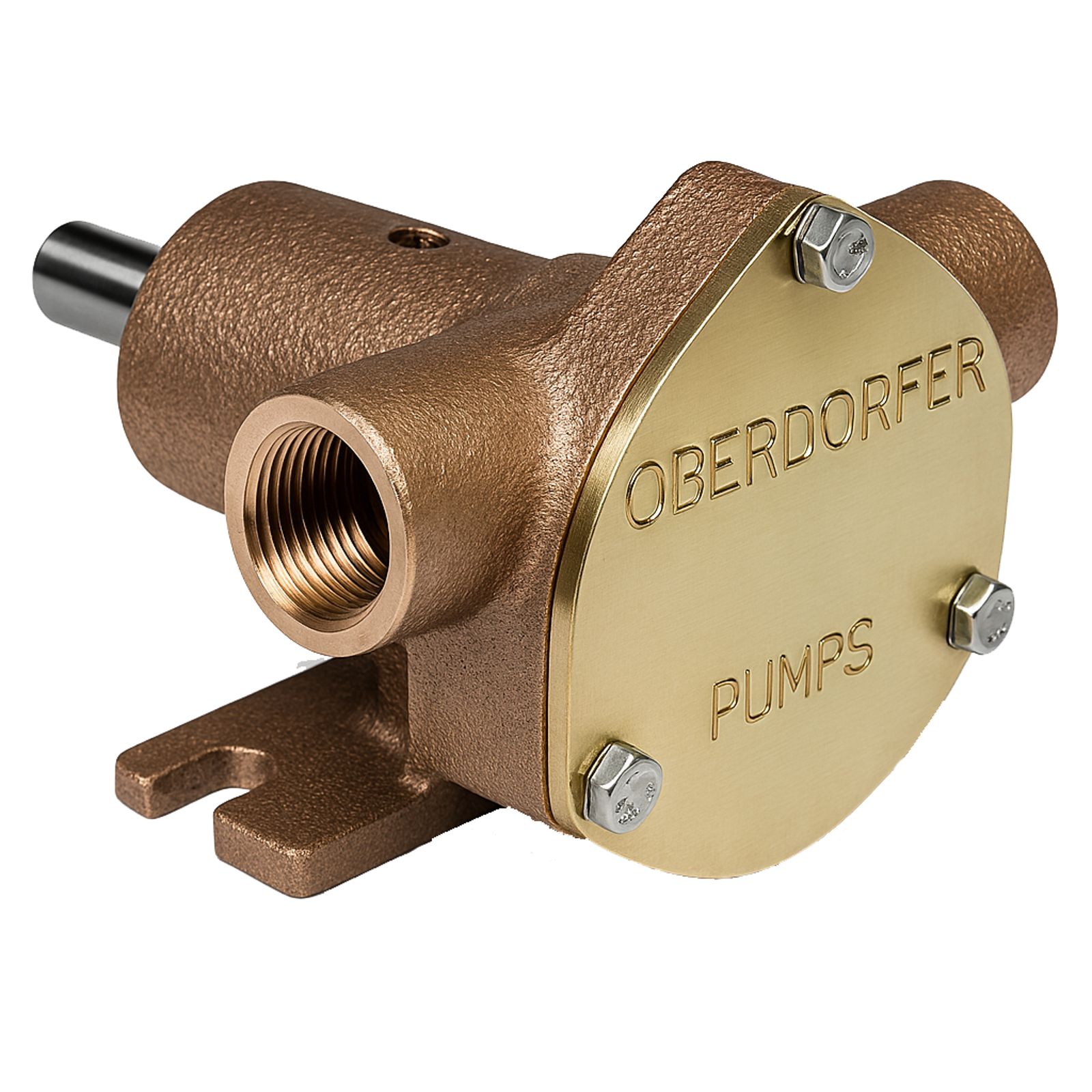

N200M | Bronze Pedestal Flexible Impeller Pump

The Bronze Pedestal Rubber Impeller Pump Model N200M is a high-performance, versatile pump designed to meet the demanding needs of both marine and industrial applications. Crafted from durable bronze, this pump offers exceptional resistance to corrosion and wear, ensuring long-lasting reliability. Its neoprene impeller is capable of efficiently pumping a variety of liquids, including fresh and salt water solutions, as well as mild chemicals. This makes it an ideal choice for tasks such as engine cooling, liquid circulation, and sump drainage. The pump's robust construction and advanced features make it a dependable solution for a wide range of fluid handling needs.

Features:

Durability: Constructed from high-quality bronze and stainless steel, the pump is built to last, even in challenging environments.

Versatility: Suitable for a wide range of applications in both marine and industrial settings, making it a versatile choice for various fluid handling needs.

Efficiency: Designed for efficient fluid transfer with minimal maintenance requirements, ensuring reliable performance.

Reliability: Features robust sealing mechanisms and high-quality bearings, providing dependable operation and reducing the risk of leaks and failures.

Ease of Maintenance: Equipped with drain openings and easy-to-replace impeller and seals, the pump is designed for straightforward maintenance, saving time and effort.

Bronze Construction: The pump's body is made from high-quality bronze, providing excellent durability and resistance to corrosion. This ensures a long service life even in harsh environments.

3/8” Suction and Discharge Ports: These ports allow for easy connection and efficient fluid transfer, making the pump suitable for various applications.

Mechanical Carbon Ring, Ceramic Face Main Pump Seal: This advanced sealing mechanism prevents leaks and ensures smooth, reliable operation. The optional Buna N lip seal offers additional sealing options for specific needs.

Two Sealed Ball Bearings: Positioned for maximum load capacity, these bearings enhance the pump's performance and reliability by reducing friction and wear.

Drain Openings: Separate seal and bearing areas to prevent contamination and facilitate easy maintenance. This design feature helps extend the pump's lifespan.

Neoprene Impeller: The standard neoprene impeller is suitable for a wide range of liquids, ensuring consistent and efficient performance. It is designed to handle fresh and salt water solutions, as well as mild chemicals.

Stainless Steel Shaft: The stainless steel shaft adds strength and resistance to wear, contributing to the pump's overall durability and reliability.

Machined-in Cam: Ensures precise and efficient operation of the impeller, enhancing the pump's performance.

Ports	3/8" Suction and Discharge
Max Capacity	5 GPM (1.13 m3/h)
Max Head	49 feet / 21 PSIG 14.9 meters / 1.45 bar
Temperature Range	40°F to 140°F (4°C to 60°C)
Materials	Bronze body, neoprene impeller, stainless steel shaft
Drive Options	Direct drive with flexible coupling or pulley drive
Suction Lift	Up to 15 feet (4.5 m) when the impeller is wet
Seal Options	Mechanical carbon ring, ceramic face main pump seal, optional Buna N lip seal

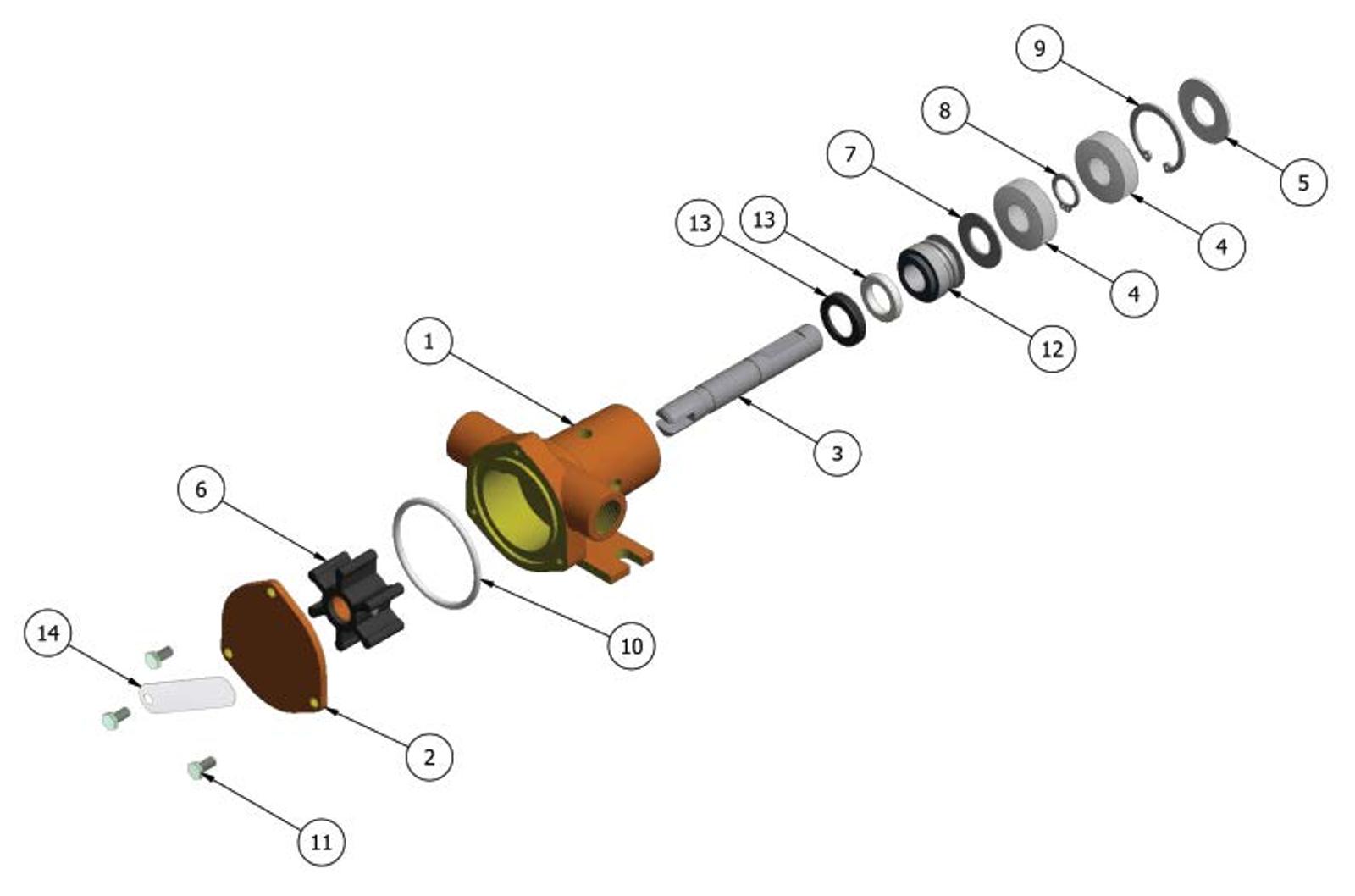

Item	Part Name	Quantity	OBN200M
1	Body	Qty. 1.	OB2373
2	Cover	Qty. 1	OB2374
3	Shaft	Qty. 1	OB2375
4	Ball Bearing	Qty. 2	OB2376
5	Dust Shield	Qty. 1	OB2378-1
6*	Impeller	Qty. 1	OB2379
7	Washer, Raised	Qty. 1	OB2383
8	Ret. Ring, 12mm	Qty. 1	OB2388
9	Ret. Ring Int., 28mm	Qty. 1	OB2389
10	O-Ring, Buna	Qty. 1	OB2390-134
11	Screw	Qty. 3	OB2391
12*	Mech Seal Head Assy	Qty. 1	OB2360
13*	Seal Seat/Boot	Qty. 1	OB3587
14	Tag	Qty. 1	OB7736
-	Repair Kit	-	OB12310

Repair Kits contain items 6, 12 & 13.
