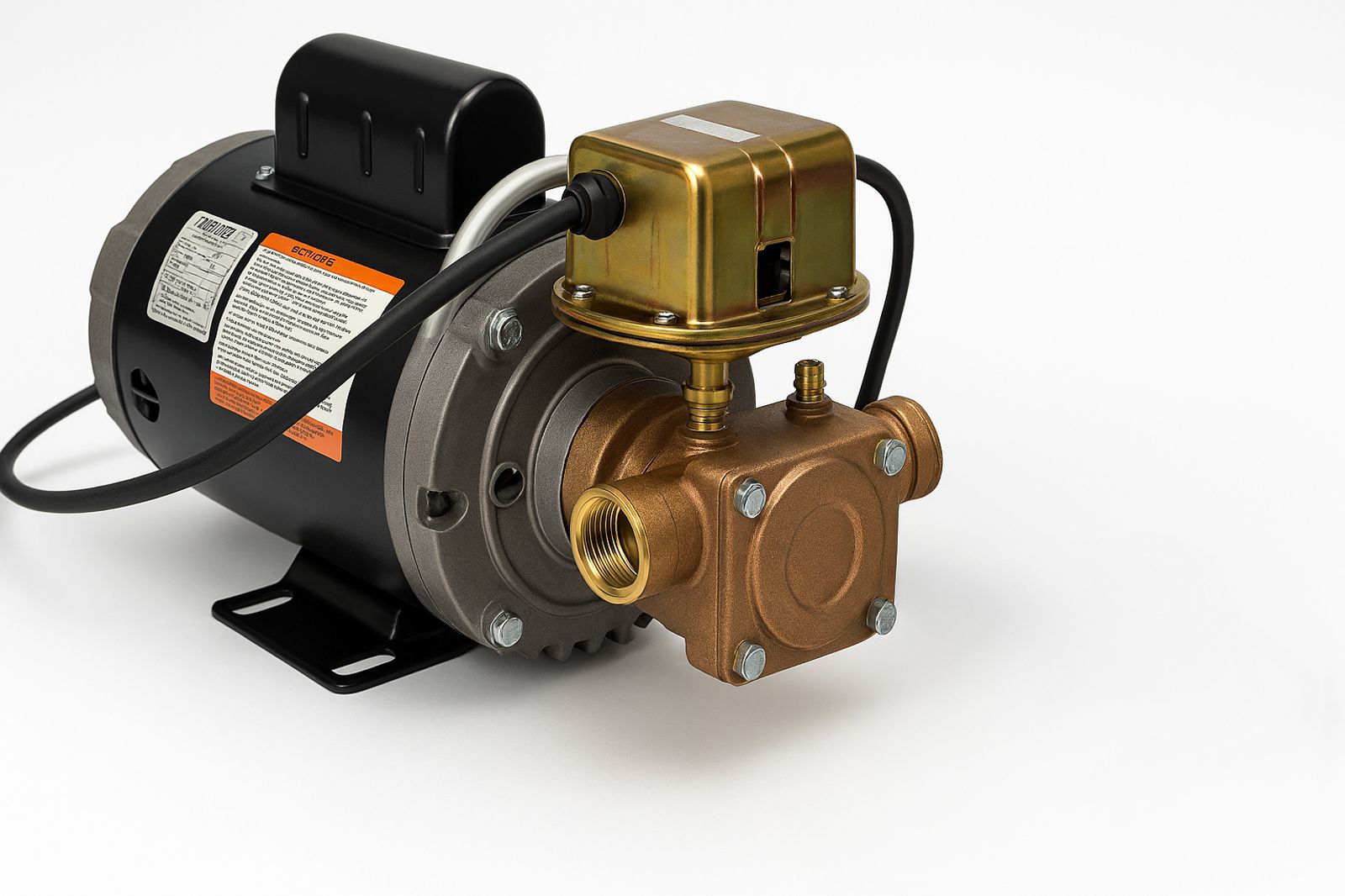

The Rubber Impeller Pump Bronze Close Coupled - Model 405M is a high-quality, durable pump designed for maximum corrosion resistance and efficient performance. This pump is ideal for handling fresh or salt water and water solutions, making it perfect for various industrial and marine applications. Its compact and portable design ensures easy installation and maintenance, while the robust construction guarantees long-lasting reliability.
Features:
Durability: Constructed from high-quality bronze and stainless steel for long-lasting performance.
Versatility: Suitable for a wide range of applications across various industries.
Efficiency: Designed for optimal performance with minimal maintenance.
Safety: Optional vacuum switch shut-off enhances operational safety.
Ease of Use: Compact, portable design with easy impeller replacement for hassle-free maintenance.
All Bronze Construction: Ensures maximum corrosion resistance and durability.
Stainless Steel Shafts: Provides strength and longevity, reducing maintenance needs.
Portable and Compact: Easy to transport and install in various settings.
Easy Impeller Replacement: Simplifies maintenance and reduces downtime.
Vacuum Switch Shut-off Optional: Enhances operational safety and control.
AC Power Cord: Convenient power connection for easy setup.
Motor/Engine Part # | Various models (see models tab) |
Horsepower | 3/4 HP to 1 HP (0.56 kW to 0.75 kW) |
Speed | 1725 RPM to 1800 RPM |
Enclosure | ODP, TEFC, XP |
Voltage | 115/230 AC (single phase), 230/460 AC (three phase), 12/24 DC |
Materials | Bronze body, stainless steel shafts, Neoprene or Buna N impellers |
Temperature Range | 40°F to 140°F (4°C to 60°C) |
Suction Lift | Up to 15 ft (4.6 m) when fully primed |
Flow Rate | Up to 25 GPM (95 LPM) |
Discharge Pressure | Up to 42.8 PSI (2.95 BAR) |
Model | Part | HP | Speed (RPM) | Enclosure | Voltage |
OB405M-04M26 | OB7048 | 3/4 | 1725 | ODP | 115/230 AC single phase |
OB405M-04M35 | OB9903 | 3/4 | 1725 | TEFC | 115/230 AC single phase |
OB405M-04M97 | OB8470 | 3/4 | 1725 | TEFC | 230/460 AC three phase |
OB405M-07M09 | OB8758 | 3/4 | 1725 | XP | 115/230 AC single phase |
OB405M-04N26 | OB7055 | 1 | 1725 | ODP | 115/230 AC single phase |
OB405M-04N95 | OB8476 | 1 | 1725 | ODP | 230/460 AC three phase |
OB405M-04M74 | OB8224 | 3/4 | 1800 | TEFC | 24 DC |
OB405M-04M75 | OB7996 | 3/4 | 1800 | TEFC | 12 DC |
OB405M-04N76 | OB9759 | 1 | 1800 | TEFC | 24 DC |
OB405M-04N75 | OB2472 | 1 | 1800 | TEFC | 12 DC |

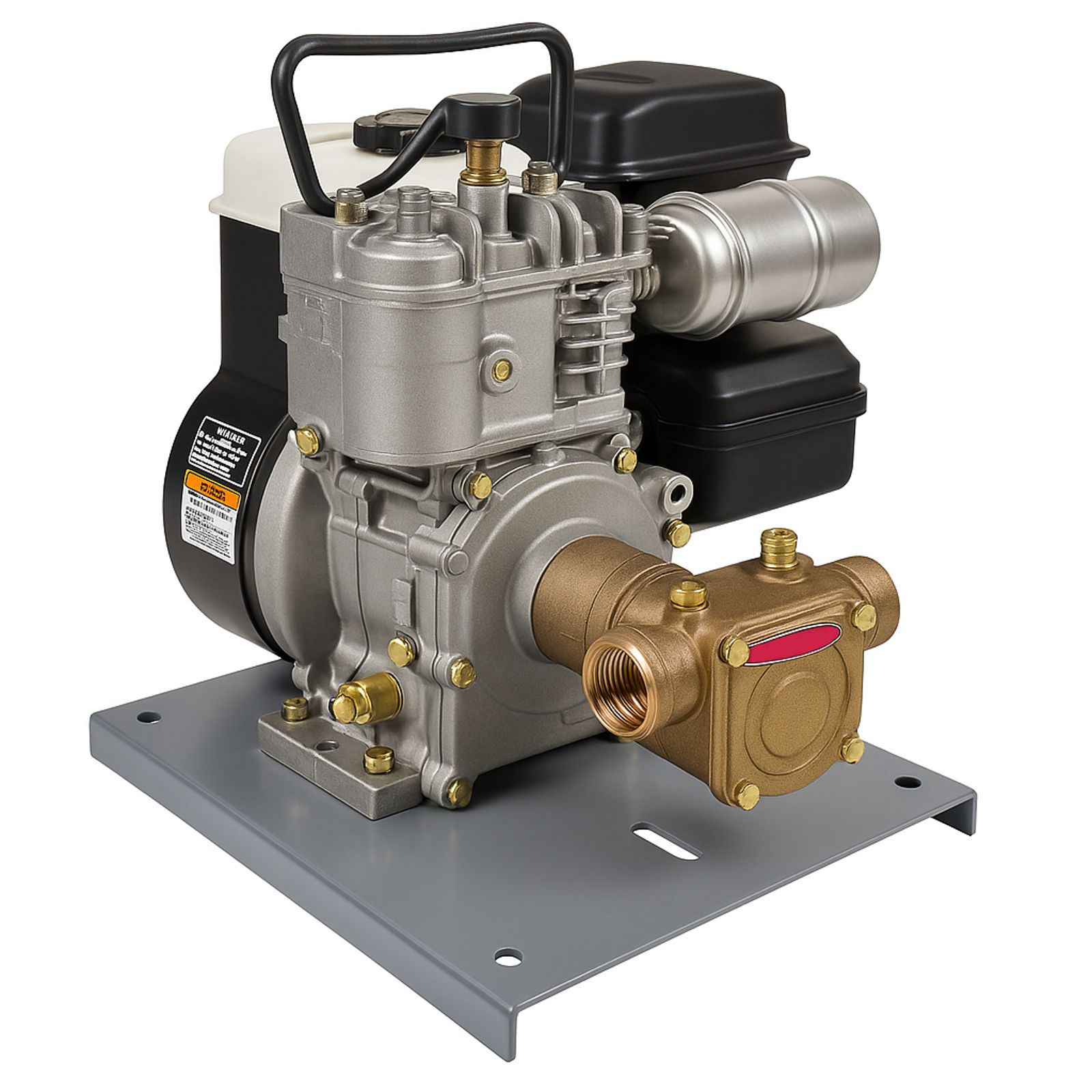

OB405MG-03UGY | OB7230 | 3 | - | - | Gasoline Engine |

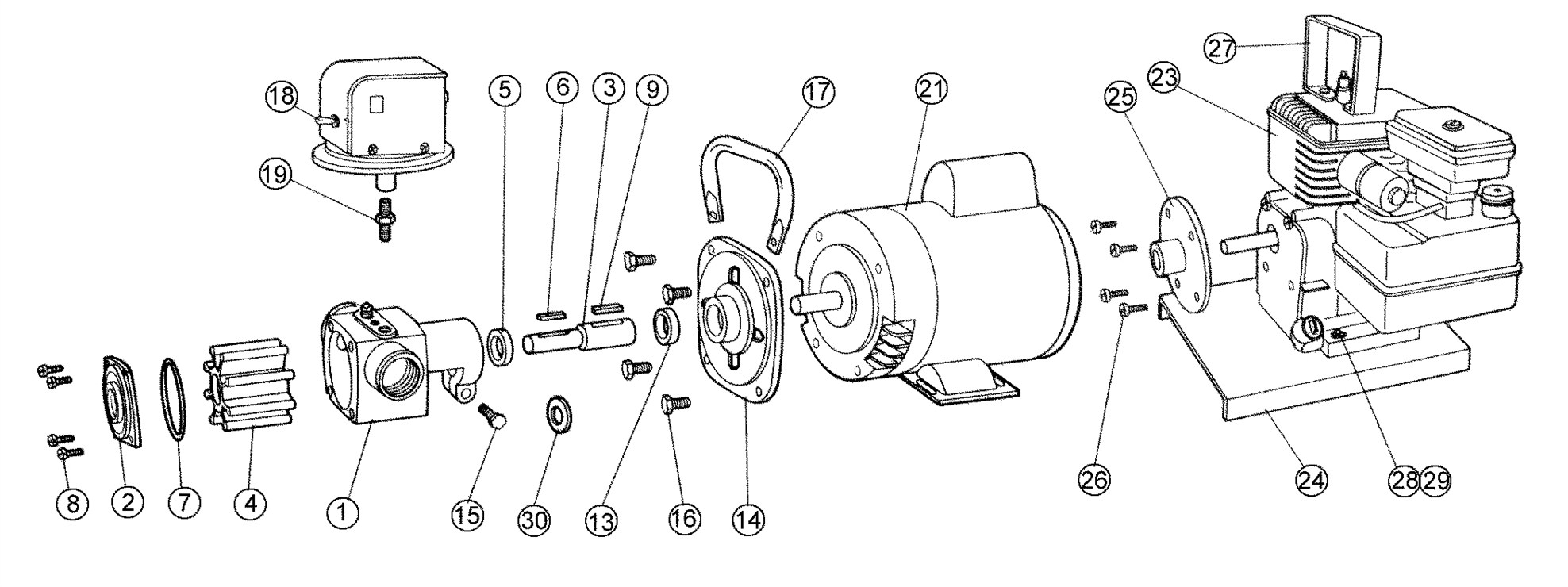

Item | Part Name | Quantity | OB405M-04 | OB405M-04M26 | OB405M-04N26 | OB405M-04M26 | OB405M-04N26 | OB405M-03UGY |
1 | Body | 1 Qty. | OB7040 | OB7040 | OB7040 | OB7040 | OB7040 | OB7040 |
2 | Cover | 1 Qty. | OB6625 | OB6625 | OB6625 | OB6625 | OB6625 | OB6625 |
3 | Shaft Exten. | 1 Qty. | OB7041 | OB7041 | OB7041 | OB7041 | OB7041 | OB7041 |
4 (3)(5) | Impeller | 1 Qty. | OB6603 | OB6603 | OB6603 | OB6603 | OB6603 | OB6603 |
5 (3) | Seal Assy. | 1 Qty. | OB32230 | OB32230 | OB32230 | OB32230 | OB32230 | OB32230 |
6 | Key | 1 Qty. | OB5475 | OB5475 | OB5475 | OB5475 | OB5475 | OB5475 |
7 (3) | O-Ring | 1 Qty. | OB8230 | OB8230 | OB8230 | OB8230 | OB8230 | OB8230 |
8 | Screw | 4 Qty. | OB5504 | OB5504 | OB5504 | OB5504 | OB5504 | OB5504 |
9 | Key | 1 Qty. | OB6845 | OB6845 | OB6845 | OB6845 | OB6845 | OB6845 |
12(2) | Wire Nut | 2 Qty. | --- | OB9857 | OB9857 | 0 | 0 | 0 |
13 | Collar | 1 Qty. | OB5886 | OB5886 | OB5886 | OB5886 | OB5886 | OB5886 |
14 | Adapter | 1 Qty. | OB7459 | OB7459 | OB7459 | OB7459 | OB7459 | 0 |
15 | Screw | 1 Qty. | OB5595 | OB5595 | OB5595 | OB5595 | OB5595 | OB5595 |
16 | Screw | 4 Qty. | OB5411 | OB5411 | OB5411 | OB5411 | OB5411 | 0 |
17(1) | Handle Motor | 1 Qty. | --- | OB9773 | OB9773 | OB9773 | OB9773 | 0 |
18(4) | Vaccum Switch | 1 Qty. | --- | --- | --- | OB7046 | OB7046 | OB7290 |
19 | Nipple | 1 Qty. | --- | --- | --- | OB7050 | OB7050 | 0 |
20(2) | Short Cord | 1 Qty. | --- | --- | --- | OB7047 | OB7047 | 0 |
21 | Motor | 1 Qty. | --- | OB7048 | OB7055 | OB7048 | OB7055 | 0 |
22(2) | Long Cord | 1 Qty. | --- | OB7044 | OB7044 | OB7044 | OB7044 | 0 |
23 | Engine | 1 Qty. | --- | --- | --- | --- | --- | OB7230 |
24 | Base | 1 Req'd | --- | --- | --- | --- | --- | OB6742 |
25 | Adapter | 1 Req'd | --- | --- | --- | --- | --- | OB7517 |
26 | Screw | 4 Req'd | --- | --- | --- | --- | --- | OB7610 |
27 | Handle Engine | 1 Req'd | --- | --- | --- | --- | --- | OB6765 |
28 | Screw | 4 Req'd | --- | --- | --- | --- | --- | OB6057 |
29 | Nut | 4 Req'd | --- | --- | --- | --- | --- | OB5597 |
30 | Washer | 1 Req'd | OB6631 | OB6631 | OB6631 | OB6631 | OB6631 | OB6631 |
- | Repair Kit | - | OB10955 | OB10955 | OB10955 | OB10955 | OB10955 | OB10955 |
Vaccum Switch Kit (4) | 0 | 0 | --- | --- | --- | OB10798 | OB10798 | OB10798 |
1 - When (OB9773) handle is used, two item 16 (OB5411) screws are replaced with two (OB5974) screws and two (OB6831) flat washers.
2 - Items 10, 11, 12, 20 & 22 are not shows in illustration
3 - Repair Kit contains items 4, 5 & 7.
4 - Vaccum Switch Kit contains items 11, 19, 20, 23 and two (OB7298) terminal rings.
5 - Impeller in Buna (-07) is OB8515, Repair Kit is OB12220.
Pump & Motor
OB405M-04M26 | OB7048
OB405M-04M35 | OB9903
OB405M-04M97 | OB8470
OB405M-07M09 | OB8758
OB405M-04N26 | OB7055
OB405M-04N95 | OB8476
OB405M-04M75 | OB7996
OB405M-04N76 | OB9759
OB405MG-03UGY | OB7230
