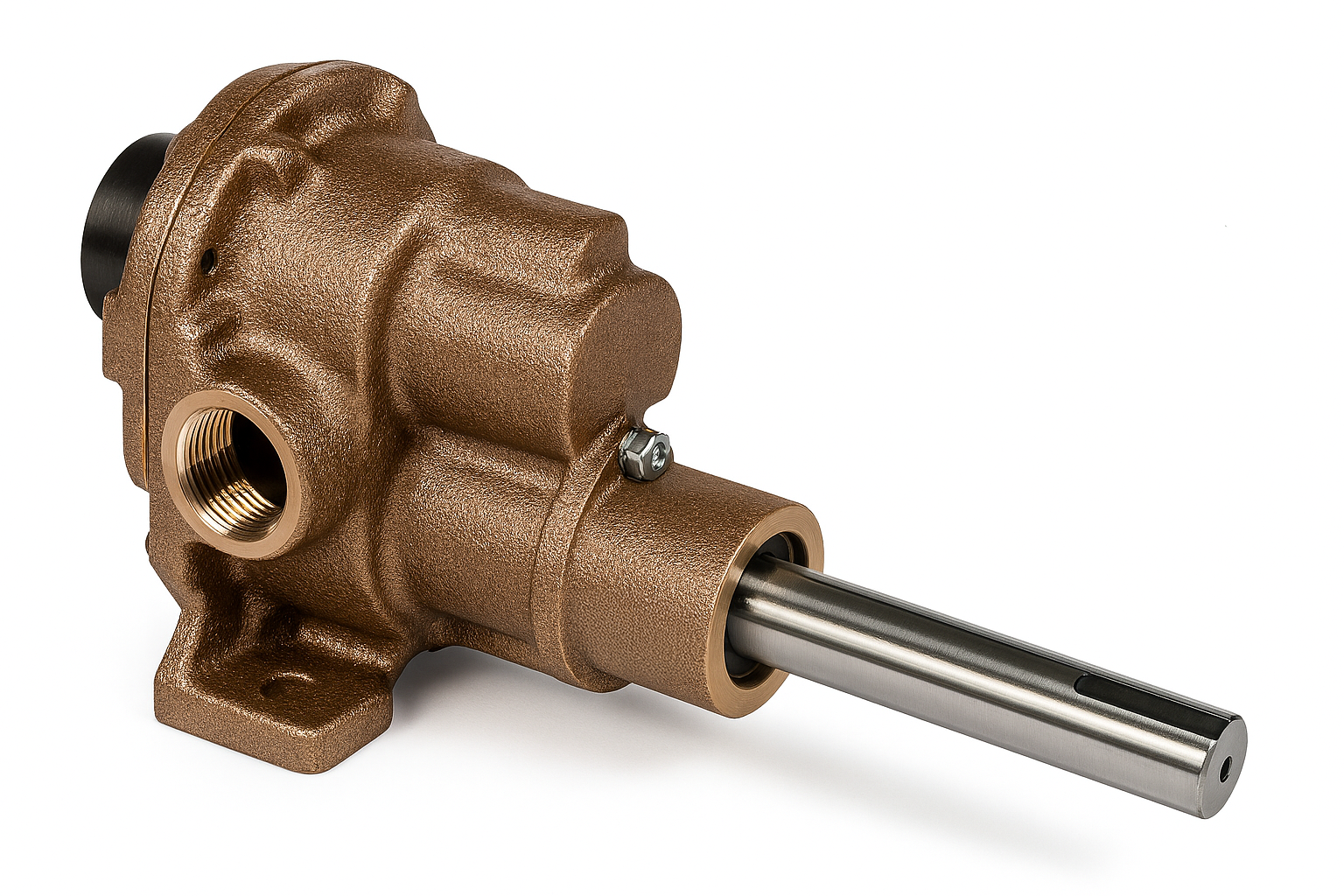

Bronze Pedestal Gear Pump - N11500

Bronze Corrosion Resistant Castings
The N11500 features bronze castings that offer outstanding corrosion resistance, ensuring the pump's longevity even in harsh environments.

Stainless Steel Shafts & Fasteners
Fitted with 303 stainless steel shafts and fasteners, this stainless steel shaft pump is built to resist wear and maintain structural integrity over time.

Self-Lubricating Carbon Bearings
The inclusion of high-performance carbon-graphite bearings pump reduces the need for maintenance. These self-lubricating pump bearings ensure smooth operation and extend the service life of the pump.

Acrylic Graphite Packing or Fluoroelastomer (S10) - Polytetrafluoroethylene (PTFE) (S11) Lip
The pump offers a choice of sealing materials, including acrylic graphite packing pump and fluoroelastomer, as well as PTFE lip seal pump options, to cater to different chemical compatibility pump requirements.

For applications that demand mechanical seals, the N11HDM models are available. Additionally, for systems with heavy pulley loads, the model N11HDP is designed to meet those needs.

Drive
The N11500 can be operated using either direct drive with flexible coupling gear pump or pulley drive gear pump configurations. Pulley-driven pumps require a pillow block bearing pump design at the drive shaft end to manage belt tension and maintain gear pump alignment, which is crucial for optimal performance.

Liquids & Temperatures
With its extremely close tolerances, the N11500 excels when pumping clean liquids with a good lubricity value pump characteristic. This gear pump for viscous liquids is designed to handle a wide temperature range of -400°F (~-240°C) to 4000°F (~2204°C), with the acrylic graphite packing rated up to 5000°F (~2760°C). Users should avoid temperature extremes to prevent damage to the pump.

For handling viscous liquids such as molasses or oils, the N11500 may require a low-speed gear pump setting to ensure effective operation. Consulting with the factory is advised to determine the recommended speeds and any necessary adjustments to motor horsepower. Additionally, large suction lines are recommended to prevent cavitation, which can lead to gear pump destruction.

Suction Lift
The N11500 is a high suction lift gear pump capable of lifting water up to 20 feet (~6.1 meters) on the suction side. While it is a self-priming gear pump, it is recommended to use a gear pump foot valve to enhance this capability. When pumping from natural water sources, a pump strainer and foot valve should be used to prevent debris from entering the pump and causing damage.

The Bronze Gear Pump - N11500 is designed for those who need a reliable and efficient pumping solution capable of handling a range of liquids and conditions. Its durable construction, combined with advanced features like chemical-resistant pump packing and temperature range gear pump capabilities, make it a top choice in the market. Contact us to learn more about how the N11500 can enhance your operations, or to request service for your gear pump needs.
