109MB | Bronze Centrifugal Close Coupled Pump

The 109MB Series Bronze Close-Coupled Centrifugal Pumps are designed for efficient and reliable performance in various industrial and marine applications. These pumps feature rugged bronze construction and are equipped with a mechanical shaft seal, making them suitable for handling a wide range of liquids, including water, oils, and mild solvents. The 109MB Series pumps are known for their quiet operation and durability, making them a standard choice in the marine air conditioning industry.

Advantages:

  • Durability: Constructed with high-quality bronze and stainless steel for long-lasting performance.

  • Versatility: Suitable for a wide range of liquids and applications, including marine and industrial uses.

  • Efficiency: Quiet operation and reliable performance ensure efficient operation.

  • Ease of Maintenance: Simple assembly and minimal maintenance requirements reduce downtime and operational costs.

  • Reliability: Proven performance in demanding environments, ensuring consistent and dependable operation.

  • Flexibility: Multiple seal options and motor compatibility offer customization for specific needs.

  • Rugged Bronze Construction:
    Provides exceptional durability and resistance to corrosion.

  • Extremely Quiet Operation:
    Minimizes noise, making it ideal for noise-sensitive applications.

  • O-Ring Housing Seal:
    Eliminates gasket problems, ensuring a secure and leak-free operation.

  • Teflon® Barrier Seal:
    Protects motor bearings, enhancing the pump's lifespan.

  • Handles Contaminated Liquids:
    Capable of pumping liquids with small solids or abrasives.

  • Discharge Port Orientation Flexibility:
    Allows for easy customization of discharge port position.

  • Mechanical Seal:
    Carbon/ceramic with NBR, FKM, or PTFE options for reliable sealing.

  • Pump Heads Mount to Standard Footed NEMA 56J Jet Pump Motors:
    Ensures compatibility with standard motor types.

  • Multiple Motor Options Available:
    Offers flexibility in motor selection to meet specific needs.



Maximum Fluid Temperature

Up to 212°F (100°C) with standard NBR seals; higher with FKM or PTFE seals

Flow Rate

Dependent on system configuration and liquid properties

Suction Lift

Up to 15 feet (1.5 m) with a foot valve and manual priming

Materials

Bronze construction, stainless steel or Monel shafts, Teflon® barrier seal, carbon/ceramic mechanical pump seals

Motor Compatibility

Standard footed NEMA 56J Jet Pump Motors; single and three-phase options

Pipe Size

Inlet: 1-1/4” NPT, Outlet: 1” NPT



Model

HP

SF

Enclosure

Phase

Voltage

Shaft Construction

Motor Item

109MB-J19

1/2

1.65

ODP

Single

115/230

416 SST

5860

109MB-J20

1/2

1.65

TEFC

Single

115/230

416 SST

7976

109MB-01J26

1/2

1.65

ODP

Single

115/230

Monel

32332

109MBP-01J58

1/2

1.00

TEFC

Three

208-230/460

Monel

33035

109MBP-M58

3/4

1.15

TEFC

Three

230/460

416 SST

7967

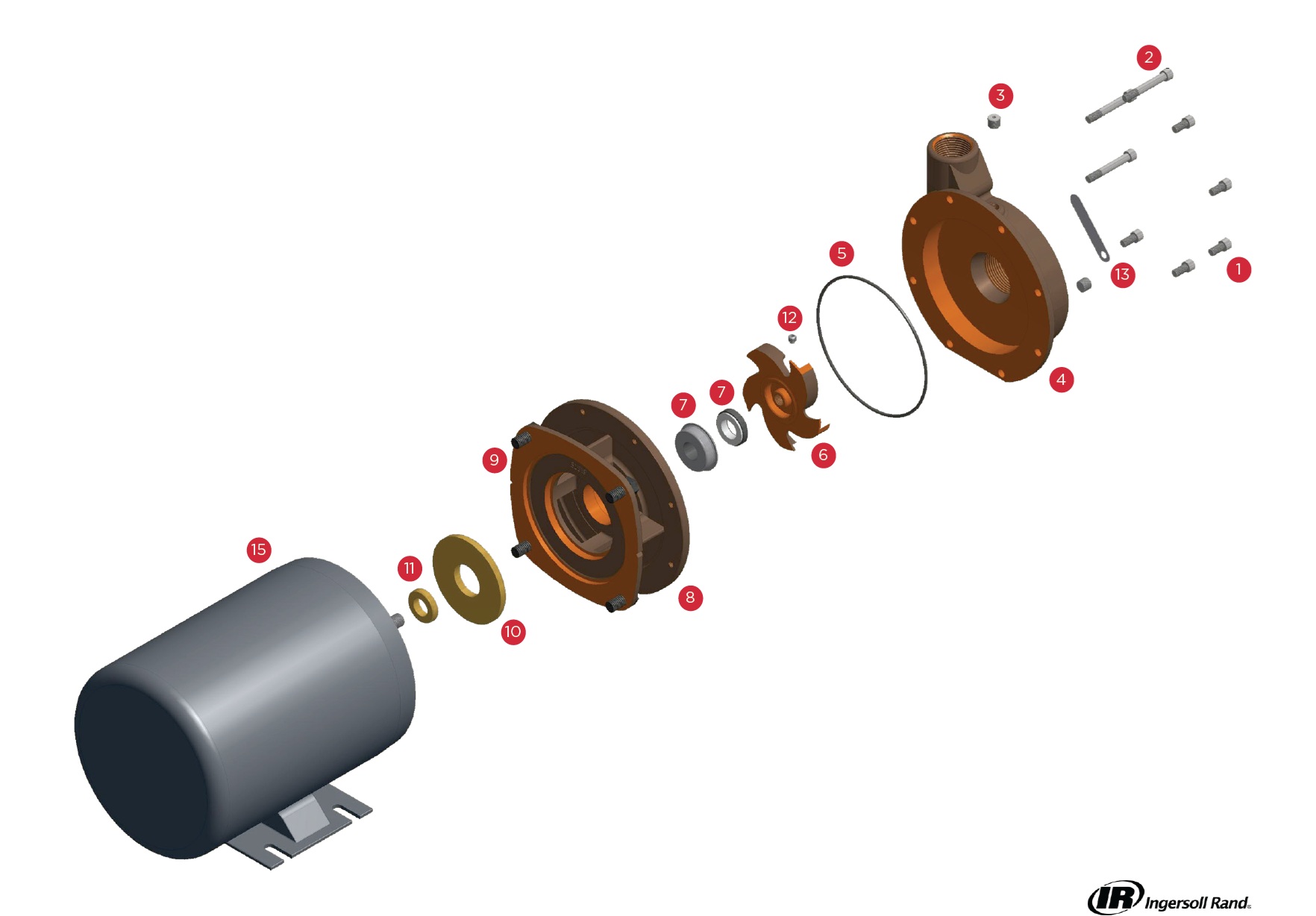

Exploded View 109MB



Item

Part Name

Quantity

OB109MB

OB109MBP

1

Screw

5

OB978304

OB978304

2

Screw

3

OB978314

OB978314

3

Pipe Plug

2

OB7687

OB5395

4

Body

1

OB5266

OB5266

5*

O-Ring

1

OB9797-157

OB9797-157

6*

Impeller

1

OB6297

OB7196

7*

Seal Assy

1

OB32155

OB32155

8

Adapter

1

OB5251

OB5251

9

Screw

4

OB5411

OB5411

10

Insert

1

OB6832

OB6832

11*

Barrier seal

1

OB6683

OB6683

12*

Set Screw

1

N/A

OB9849

13

Tag

1

OB7737

OB7737

14**

Shims

As required

OB602501

OB602501

14**

Shims

As required

OB602502

OB602502

14**

Shims

As required

OB602503

OB602503

15

Motor

1

See Motor Options Chart

-

Repair Kit

-

OB10721

OB11065

Repair Kit includes item numbers 5, 6, 7, 11, 12 and 14



OB109MB-J19 | 1/2 HP | 1.65 | ODP | Single 115/230V | 416 SST | OB5860

OB109MB-J20 | 1/2 HP | 1.65 | TEFC | Single 115/230V | 416 SST | OB7976

OB109MB-01J26 | 1/2 HP | 1.65 | ODP | Single 115/230V | Monel | OB32332

OB109MBP-01J58 | 1/2 HP | 1 | TEFC | Three 208-230/460V | Monel | OB33035

OB109MBP-M58 | 3/4 HP | 1.15 | TEFC | Three 230/460V | 416 SST | OB7967
