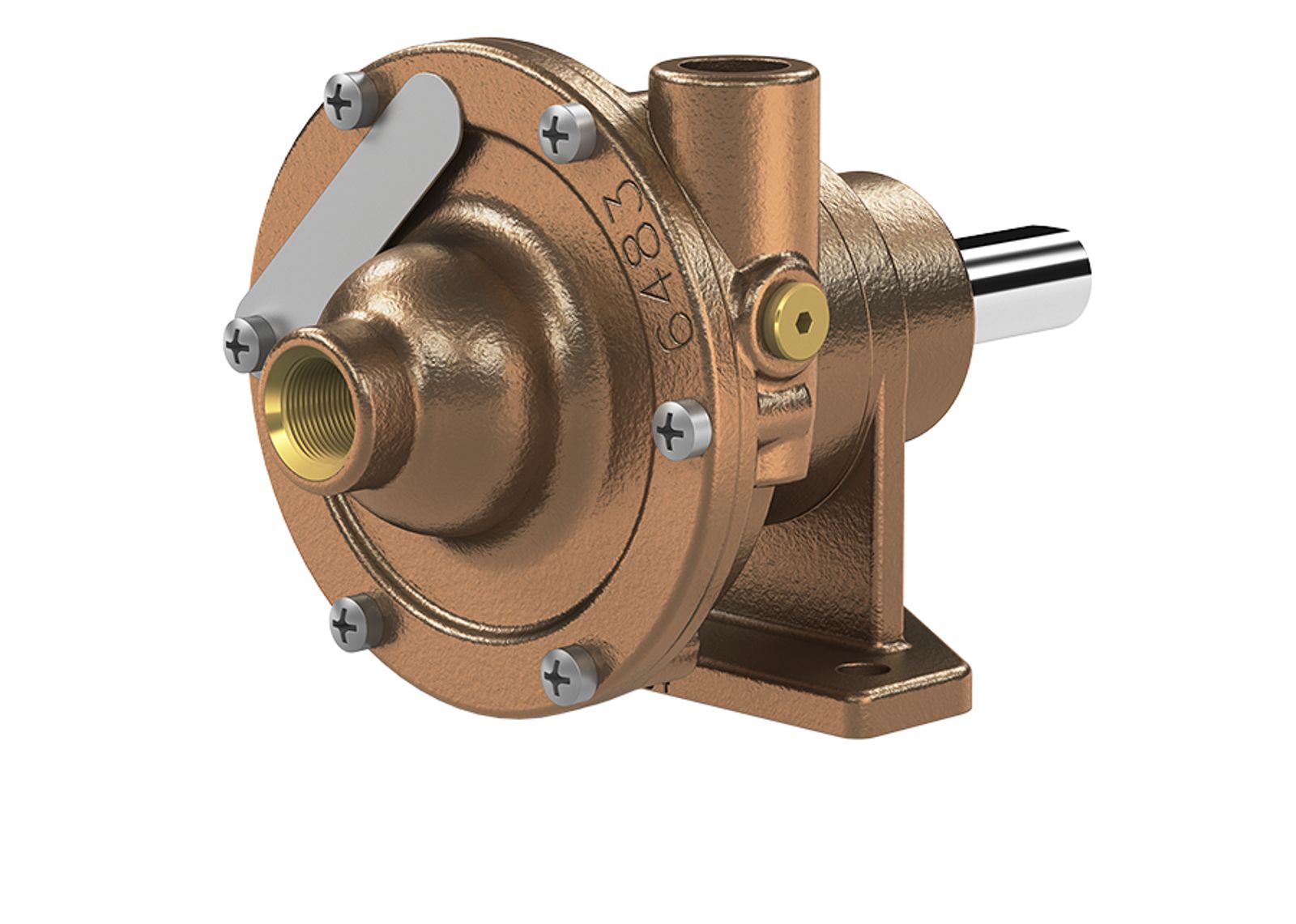

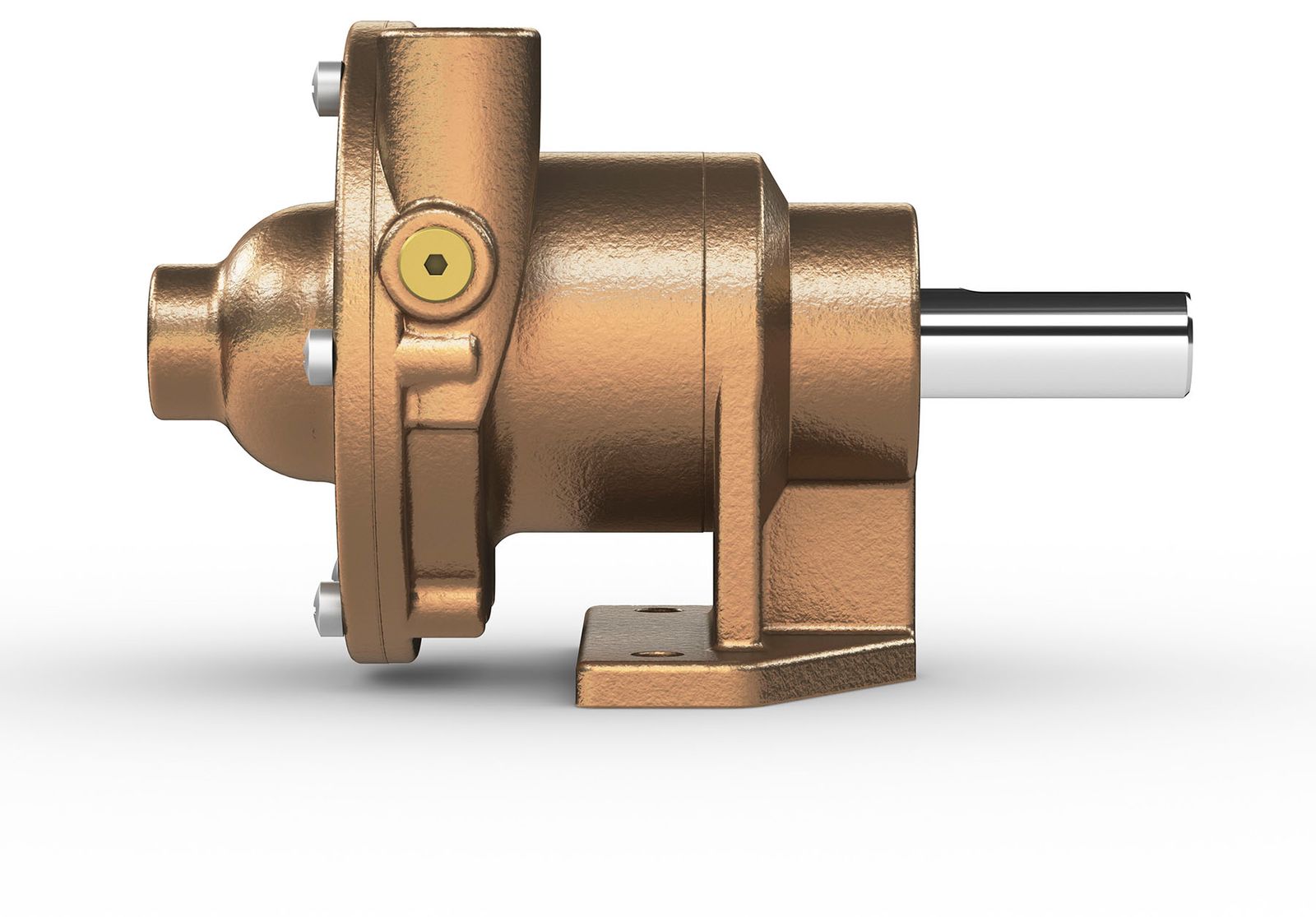

50P | Bronze Centrifugal Pedestal Pump

The Bronze Centrifugal Pump 50P Series is a high-performance pump designed for efficient and reliable liquid transfer. Constructed entirely from bronze, this pump offers exceptional durability and resistance to corrosion, making it ideal for a wide range of industrial applications. Its heavy-duty ball bearings ensure long-lasting performance, while the mechanical seal prevents leaks and ensures efficient operation. The pump is designed for pulley drive, allowing for flexible installation and operation. With its quiet operation and ability to handle contaminated liquids, the 50P Series is perfect for environments where noise reduction and reliability are crucial.

Advantages

  • Durability: The all-bronze construction ensures long-lasting use, even in harsh environments.

  • Efficiency: The pump is designed for optimal performance with minimal maintenance, reducing operational costs.

  • Versatility: Suitable for a wide range of applications and environments, from industrial liquid transfer to marine applications.

  • Reliability: Heavy-duty components and mechanical seals ensure consistent and reliable operation.

  • Ease of Use: The pump requires no lubrication, reducing maintenance efforts and costs, and can be easily integrated into various systems using a pulley drive.

  • All Bronze Construction:
    The pump's all-bronze construction provides superior durability and resistance to corrosion, ensuring a long service life even in harsh environments.

  • Heavy Duty Ball Bearings:
    These bearings are designed to withstand heavy loads and provide long-lasting, reliable performance.

  • Designed for Pulley Drive:
    The pump can be easily integrated into various systems using a pulley drive, offering flexibility in installation and operation.

  • Mechanical Seal:
    The mechanical seal prevents leaks, ensuring efficient and reliable operation.

  • Quiet Operation:
    The pump operates quietly, making it suitable for use in environments where noise reduction is important.

  • Handles Contaminated Liquids:
    The pump is capable of handling liquids with impurities without clogging, making it ideal for industrial applications.

  • No Lubrication Required:
    The pump requires no lubrication, reducing maintenance needs and operational costs.



Inlet/Outlet

3/8” NPT

Maximum Temperature

212°F (100°C); higher with FKM seals

Max Capacity

9 GPM (2 m³/h)

Max Head

35 ft (5 m)

Suction Lift

Up to 15 ft (4.6 m) with proper priming

Materials

Bronze construction with NBR or FKM seals

Drive Options

Direct driven by electric motors (3450 or 1725 RPM), or pulley driven at other speeds

Viscosity Handling

Up to S.A.E. 30 oil at room temperature (performance may decrease with higher viscosity)

Specific Gravity Handling

Can pump heavy liquids; horsepower increases with liquid weight

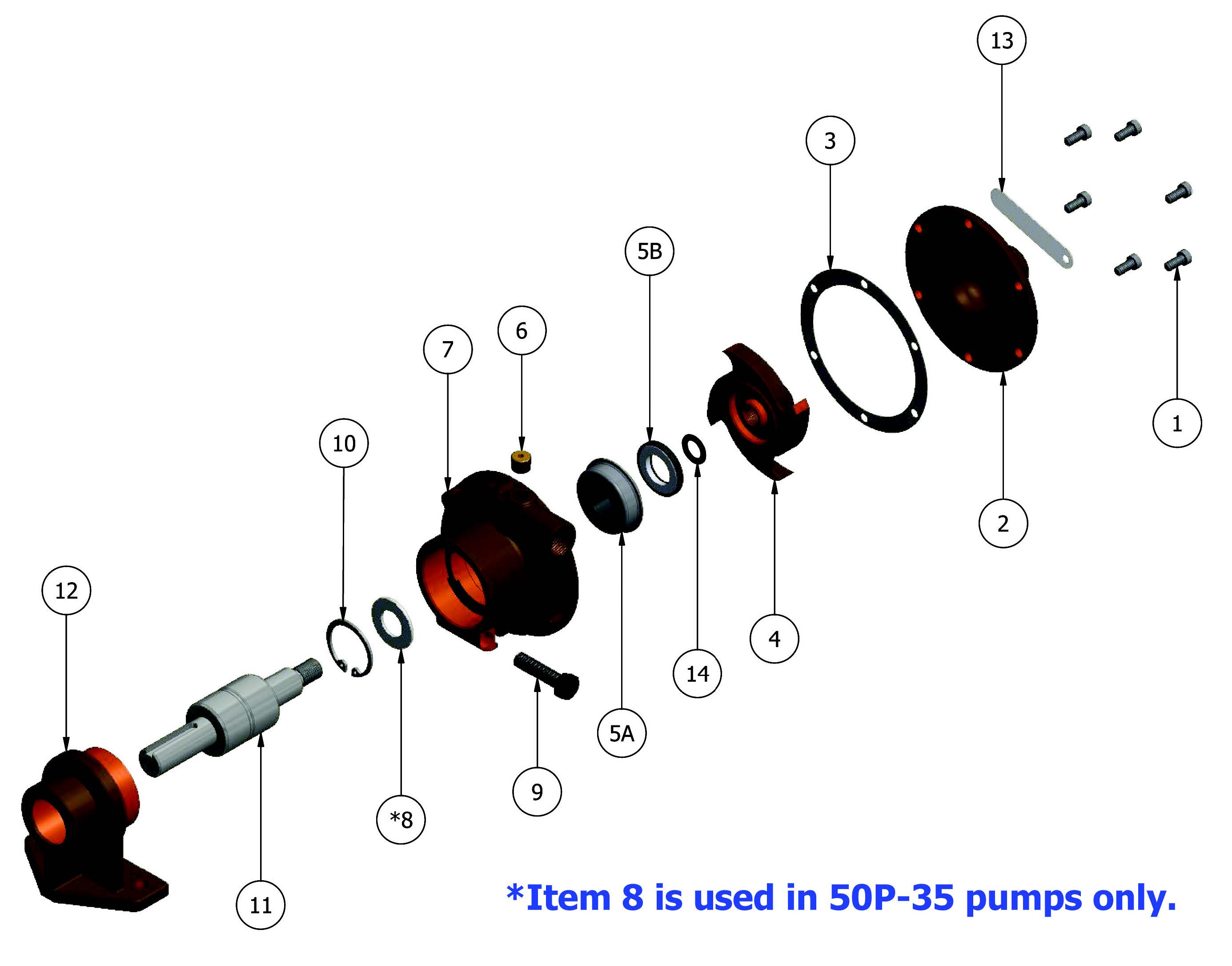

Exploded View 50P



Item

Part Name

Quantity

OB50P-15

OB50P-35

OB50PS-10

1

Screw

Qty. 6

OB5385

OB5385

OB5385

2

Cover

Qty. 1

OB6483

OB6483

OB6483

3*

Gasket

Qty. 1

OB6502

OB6502

OB6502

4*

Impeller

Qty. 1

OB6476

OB6476

OB6589

5*

Seal Assy

Qty. 1

OB32154

OB32154

OB32210

6

Plug

Qty. 1

OB6052

OB6052

OB5395

7

Body

Qty. 1

OB6475

OB6475

OB6475

8

Slinger

Qty. 1

n/a

OB7447

n/a

9

Screw

Qty. 1

OB5595

OB5595

OB5595

10

Ret. Ring

Qty. 1

OB5741

OB5741

OB5741

11*

Shaft &
Bearing

Qty. 1

OB5348

OB8114

OB5348

12

Pedestal

Qty. 1

OB6484

OB6484

OB6484

13

Tag

Qty. 1

OB7736

OB7736

OB7736

14*

Shim

Qty. 1

OB602502

OB602502

OB602502

-

Repair Kit

-

OB10690

OB11369

OB11587

Repair kit contains items 3, 4, 5, 11 & 14
