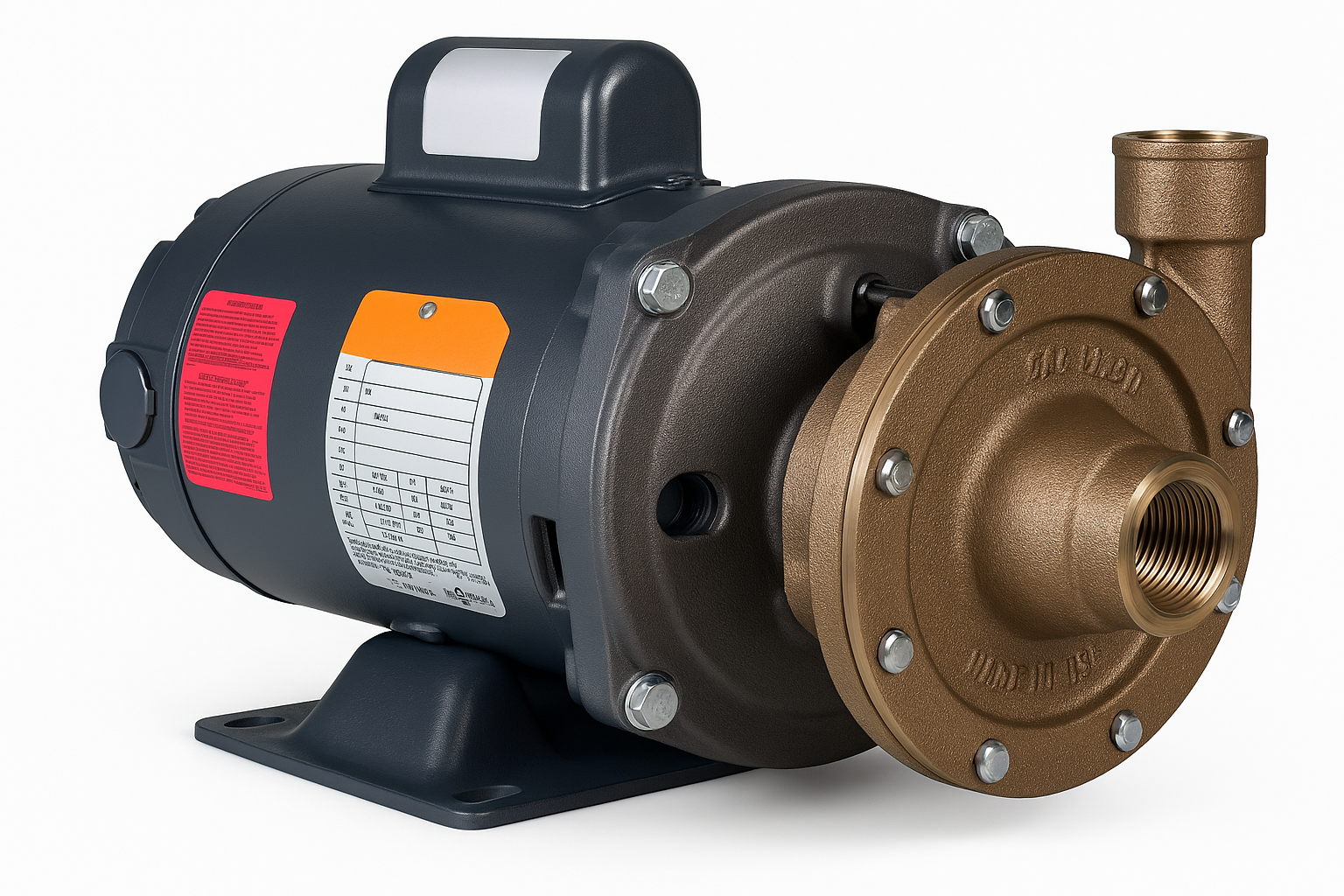

600 | Bronze Centrifugal Close Coupled Pump

The Bronze Close Coupled Centrifugal Pump 600 Series is a high-performance pump designed to meet the demanding needs of various industries. Crafted from durable bronze, this pump is renowned for its reliability and efficiency. It is a staple in the marine air conditioning industry due to its robust construction and quiet operation. This pump is engineered to handle contaminated liquids, making it versatile for a wide range of applications. Its innovative design ensures long-lasting performance and minimal maintenance, providing an excellent solution for both commercial and residential use.

Advantages:

Durability: Constructed from high-quality bronze and stainless steel, this pump is built to last, providing reliable performance over the long term.

Versatility: Suitable for a wide range of applications, from marine to industrial and residential uses, making it a versatile choice for various needs.

Quiet Operation: Designed to operate quietly, this pump ensures minimal noise, enhancing user comfort and suitability for noise-sensitive environments.

Flexibility: With multiple motor and seal options, this pump can be customized to meet specific requirements, ensuring optimal performance for different applications.

Reliability: Proven to handle contaminated liquids efficiently, this pump maintains its performance and reliability even in challenging conditions.

Rugged Bronze Construction:
The pump's body is made from high-quality bronze, offering exceptional durability and resistance to corrosion, even in harsh environments.

Extremely Quiet Operation:
Designed to operate with minimal noise, this pump is ideal for settings where quiet operation is crucial, such as residential areas and commercial buildings.

O-Ring Housing Seal:
The O-ring housing seal eliminates common gasket problems, ensuring a secure and leak-free operation, which enhances the pump's reliability.

Handles Contaminated Liquids:
Capable of pumping liquids that contain small solids or abrasives, this pump is suitable for various industrial applications where liquid purity cannot be guaranteed.

Discharge Port Orientation Flexibility:
The pump's design allows for flexible discharge port orientation, making installation easier and more adaptable to different setups.

Mechanical Seal Options:
Available with carbon/ceramic, NBR, FKM, or PTFE seals, the pump can be customized to handle a wide range of chemicals and solvents, ensuring compatibility with specific application needs.

Multiple Motor Options:
The pump can be paired with standard footed NEMA 56J jet pump motors, providing flexibility in motor selection to meet different performance requirements.

Inlet/Outlet	3/4” NPT inlet, 1/2” NPT outlet
Max Capacity	24 GPM (5.45 m³/h)
Max Head	53 ft (16 m)
Max Pressure	22 psi (1.5 bar)
Maximum Viscosity	2000 Saybolt Seconds Universal
Temperature Range	Up to 212°F (100 °C)
Materials	Bronze construction with 416 stainless steel shafts
Motor Options	Various options including single and three-phase motors with different horsepower and voltage specifications

Model	Motor	Motor Specs
600	F13	1/3 HP, 3450 RPM, 115v, Single, ODP
600	F19	1/3 HP, 3450 RPM, 115/230v, Single, ODP
600	F20	1/3 HP, 3450 RPM, 115/230v, Single, TEFC
600	F21	1/3 HP, 3450 RPM, 115/230v, Single, XP
600	F22	1/3 HP, 2850 RPM, 115/230v, Single, ODP
600, 600S-10, 600S-11	J19	1/2 HP, 3450 RPM, 115/230v, Single, ODP
600, 600S-10, 600S-11	J20	1/2 HP, 3450 RPM, 115/230v, Single, TEFC
600P, 600P-S10, 600PS-11	F57	1/3 HP, 3450 RPM, 220/440v, Three, ODP
600P, 600P-S10, 600PS-11	M57	3/4 HP, 3450 RPM, 220/440v, Three, ODP
600P, 600P-S10, 600PS-11	M58	3/4 HP, 3450 RPM, 220/440v, Three, TEFC
600P, 600P-S10, 600PS-11	F58	1/3 HP, 3450 RPM, 220/440v, Three, TEFC
600P, 600P-S10, 600PS-11	J58	1/2 HP, 3450 RPM, 220/440v, Three, TEFC

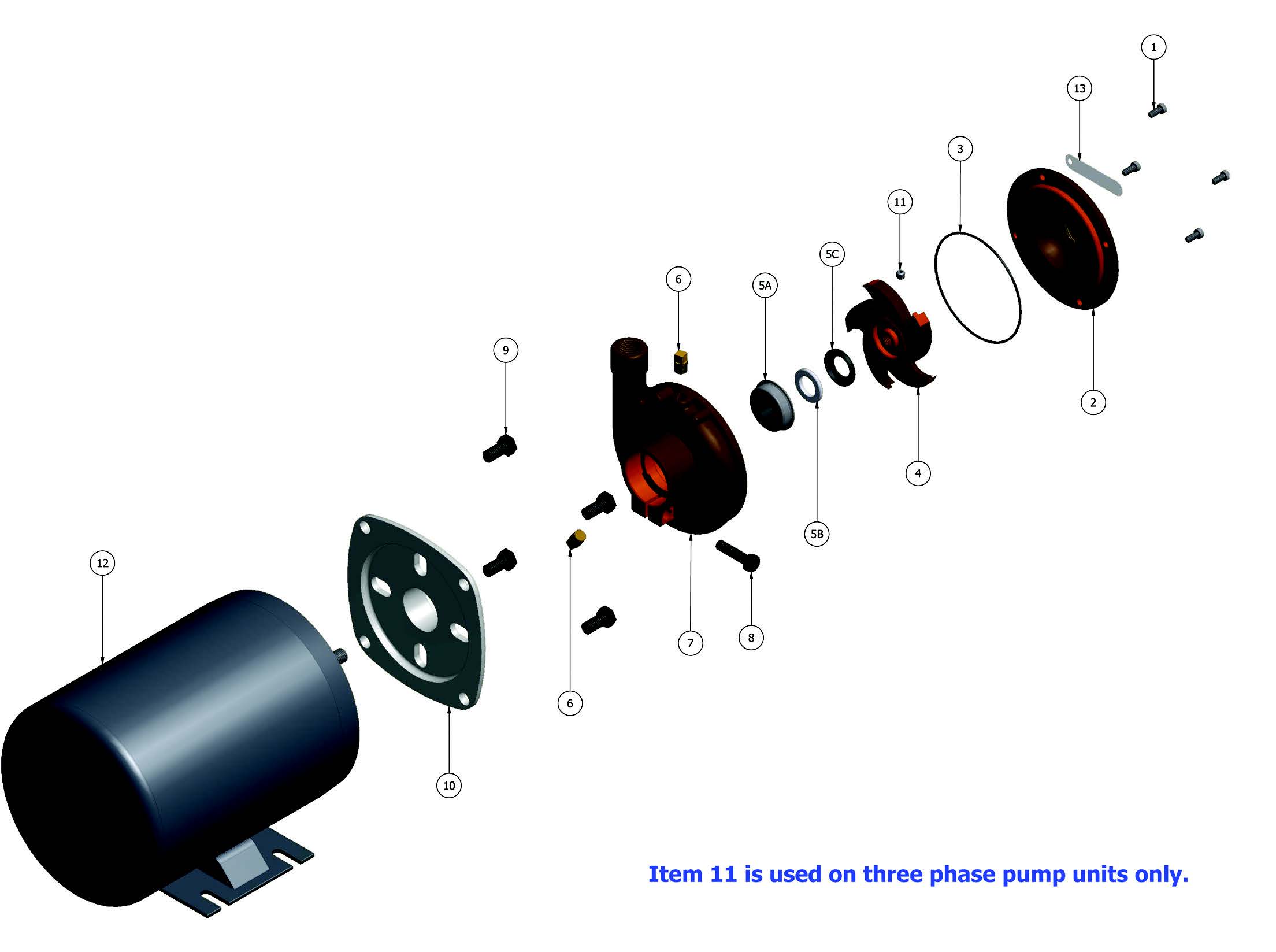

Item	Part Name	Quantity	OB600	OB600P	OB600S-10	OB600PS-10	OB600S-11	OB600PS-11
1	Screw	Qty. 4	OB5385	OB5385	OB5385	OB5385	OB5385	OB5385
2	Cover	Qty. 1	OB5168-2	OB5168-2	OB5168-2	OB5168-2	OB5168-2	OB5168-2
3*	O-Ring	Qty. 1	OB9797-043	OB9797-043	OB9797-043	OB9797-043	OB9355-043	OB9355-043
4*	Impeller	Qty. 1	OB5219	OB7201	OB6033	OB7432	OB6033	OB7432
5a*	Seal Head	Qty. 1	OB2913	OB2913	OB6141	OB6141	OB32211	OB32211
5b*	Seal Wearface	Qty. 1	OB529201	OB529201	OB6142	OB6142	OB32211	OB32211
5c*	Seal Seat or O-Ring	Qty. 1	OB529201	OB529201	OB6143	OB6143	OB32211	OB32211
6	Plug	Qty. 2	OB6052	OB5395	OB6052	OB6052	OB6052	OB6052
7	Body	Qty. 1	OB7515-2	OB7515-2	OB7515-2	OB7515-2	OB6173-2	OB6173-2
8	Screw	Qty. 1	OB5595	OB5595	OB5595	OB5595	OB5595	OB5595
9	Screw	Qty. 4	OB5411	OB5411	OB5411	OB5411	OB5411	OB5411
10	Adapter	Qty. 1	OB7611	OB7611	OB7611	OB7611	OB7611	OB7611
11	Set Screw	Qty. 1	n/a	OB9849	n/a	OB9849	n/a	OB9849
12	Motor	Qty. 1	See Chart	See Chart	See Chart	See Chart	See Chart	See Chart
13	Name Plate	Qty. 1	OB7736	OB7736	OB7736	OB7736	OB7736	OB7736
-	Repair Kit	-	OB10696	OB10858	OB10814	OB12175	OB10768	OB11747

* Repair kit contains items 3, 4, 5 (5a, 5b, 5c), & 11

* Item 8 is used in OB50P-35 pumps only

Motor P/N (Item 12)

OB600, OB600S-10, OB600S-11 | F13 | OB5859

OB600 | F19 | OB7957

OB600 | F20 | OB7986

OB600 | F21 | OB8214

OB600 | F22 | OB9758

OB600, OB600S-10, OB600S-11 | J19 | OB5860

OB600, OB600S-10, OB600S-11 | J20 | OB7976

OB600P, OB600P-S10, OB600PS-11 | F57 | OB6996

OB600P | M57 | OB6999

OB600P, OB600P-S10, OB600PS-11 | M58 | OB7967

OB600P-S10, OB600PS-11 | F58 | OB7987

OB600P, OB600P-S10, OB600PS-11 | J58 | OB9214
