60P | Bronze Centrifugal Pedestal Pump

The 60P Series Bronze Centrifugal Pumps are engineered for superior performance and reliability. Constructed with high-quality bronze, these pumps are designed to handle both clean and contaminated liquids, making them versatile for various applications. Their quiet operation and robust construction make them ideal for use in industrial settings, laboratories, offices, and residential areas. With a focus on efficiency and durability, these pumps ensure long-lasting service and minimal maintenance.

Advantages:

  • Durability: Constructed with high-quality bronze, these pumps are built to last, providing reliable performance over time.

  • Versatility: Suitable for a wide range of applications, from industrial to residential, and capable of handling various liquid types.

  • Efficiency: Designed for quiet and efficient operation, making them ideal for environments where noise reduction is important.

  • Low Maintenance: Sealed ball bearings require no lubrication, reducing maintenance needs and ensuring long-term reliability.

  • Customizable: Available with different seal options to handle various temperatures and chemicals, enhancing their adaptability to different applications.

  • Proven Performance: Trusted by professionals for their reliable and consistent performance in demanding environments.

  • Rugged Bronze Construction:
    Built to withstand harsh conditions, ensuring longevity and durability.

  • Quiet Operation:
    Designed to operate quietly, making them suitable for noise-sensitive environments such as offices, laboratories, and residential areas.

  • O-Ring Housing Seal:
    Provides a reliable seal, eliminating common gasket problems and ensuring leak-free operation.

  • Mechanical Seal Options:
    Available with NBR, FKM, or PTFE seals to accommodate various liquids and temperature ranges, enhancing versatility.

  • Heavy Duty Integral Steel Shaft and Ball Bearings:
    Offers robust support and stability, with sealed bearings that require no lubrication, reducing maintenance needs.

  • Handles Contaminated Liquids:
    Capable of efficiently pumping liquids with contaminants, making them suitable for a wide range of applications.

  • Designed for Pulley Drive:
    Allows for flexible installation and operation, accommodating different speed requirements and setups



Ports (Inlet/Outlet)

3/4” NPT x 1/2” NPT

Maximum Temperature

212°F (100°C) with NBR seals
Up to 500°F (260°C) with PTFE seals

Max Capacity

25 GPM (5.7 m³/h)

Max Head

68 ft (21 m)

Materials

High-quality bronze body
Seals: NBR, FKM, or PTFE

Suction Lift

Up to 15 ft with proper priming and foot valve

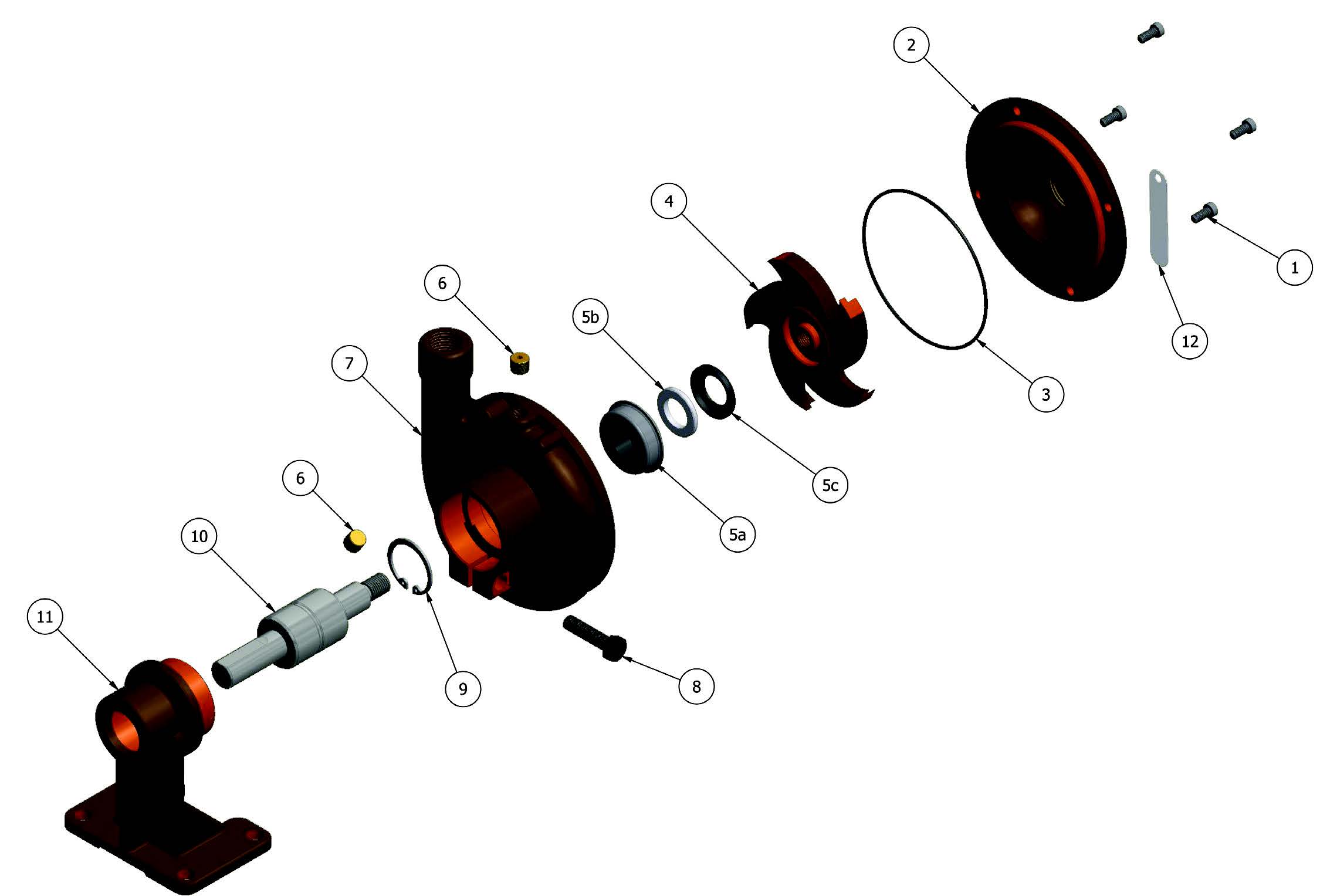

Exploded View 60P



Item

Part Name

Quantity

OB60P

OB60PS-10

OB60PS-11

1

Screw

Qty. 4

OB5385

OB5385

OB5385

2

Cover

Qty. 1

OB5168-2

OB5168-2

OB5168-2

3*

O-Ring

Qty. 1

OB9797-043

OB9797-043

OB9355-043

4*

Impeller

Qty. 1

OB5219

OB6033

OB6033

5a*

Seal Head

Qty. 1

OB2913

OB6141

OB32211

5b*

Seal
Wearface

Qty. 1

OB529201

OB6142

OB32211

5c*

Seal Seat or
O-Ring

Qty. 1

OB529201

OB6143

OB32211

6

Plug

Qty. 2

OB6052

OB6052

OB6052

7

Body

Qty. 1

OB7515-2

OB7515-2

OB7515-2

8

Screw

Qty. 1

OB5595

OB5595

OB5595

9

Ret. Ring

Qty. 1

OB5741

OB5741

OB5741

10*

Shaft &
Bearing

Qty. 1

OB5348

OB5348

OB5348

11

Pedestal

Qty. 1

OB5215

OB5215

OB5215

12

Name Plate

Qty. 1

OB7736

OB7736

OB7736

-

Repair Kit*

-

OB10692

OB10994

OB10966

Items 3, 4, 5 (5a, 5b & 5c) and 10 are included in the Repair Kits
