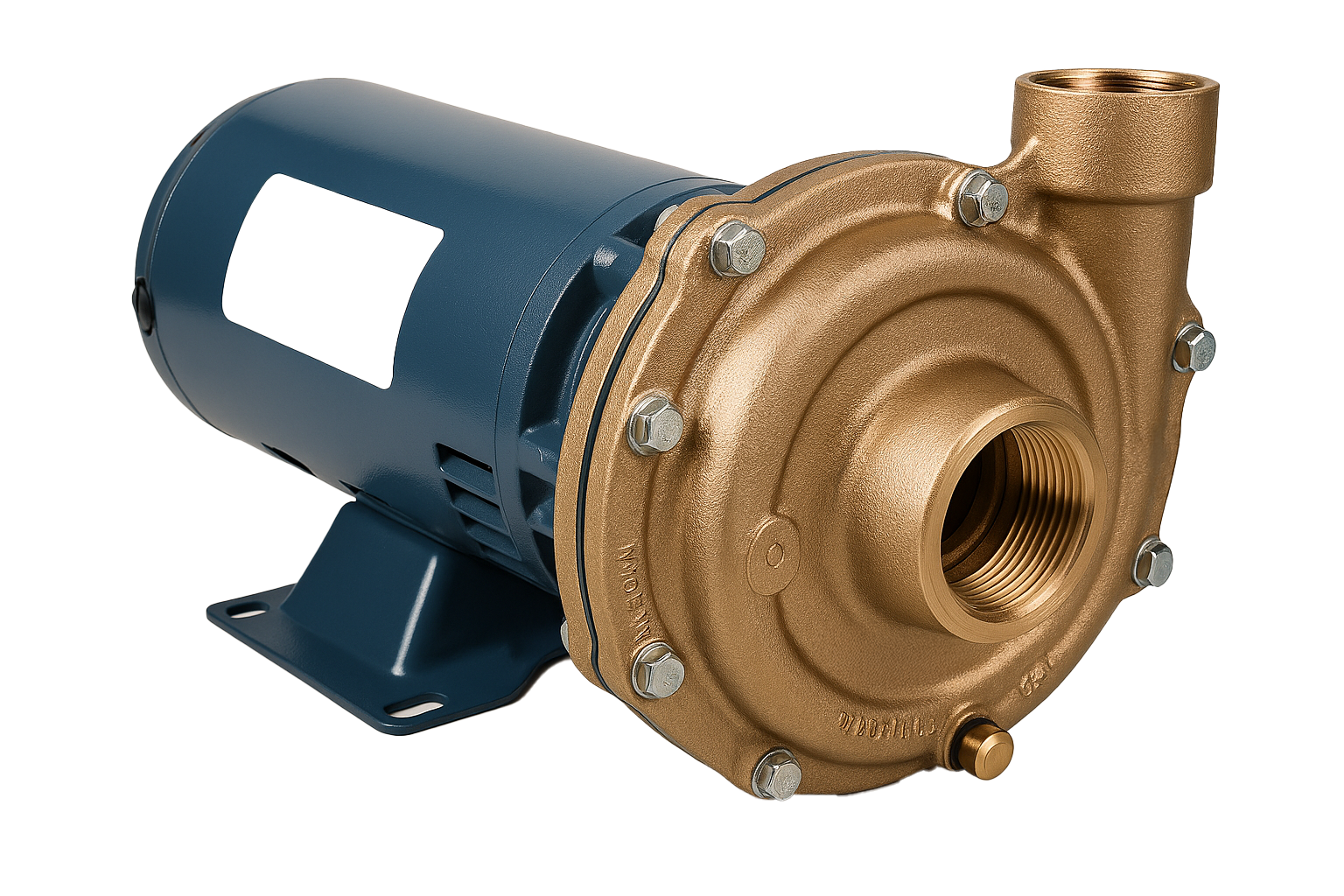

700 | Bronze Centrifugal Close Coupled Pump

The Model 700 Close Coupled Bronze Centrifugal Pump is engineered for superior performance and reliability across a wide range of applications. Constructed from durable bronze, this pump is designed to handle contaminated liquids efficiently while offering flexible discharge port orientations. With multiple motor options and a robust mechanical seal, the Model 700 ensures long-lasting operation and minimal maintenance. Ideal for both industrial and commercial use, this pump is a versatile solution for various liquid handling needs.

Advantages:

Durability: Built with rugged bronze construction for long-lasting performance in demanding environments.

Versatility: Wide hydraulic range and multiple motor options to suit various applications and power requirements.

Reliability: Capable of handling contaminated liquids and providing flexible discharge port orientations for optimal installation.

Compatibility: Standard footed NEMA 56J Jet Pump Motors ensure easy installation and compatibility with existing systems.

Customizable: Optional mechanical seals available for handling different chemicals and solvents, enhancing the pump's versatility.

Rugged Bronze Construction:
Provides exceptional durability and resistance to corrosion, ensuring a long service life.

Quiet Operation:
Designed to minimize noise, creating a more comfortable working environment.

O-Ring Housing Seal:
Eliminates gasket problems, ensuring a secure and leak-free operation.

Wide Hydraulic Range:
Available with four different impeller sizes to meet diverse application requirements.

Handles Contaminated Liquids:
Capable of pumping liquids containing small solids or abrasives without compromising performance.

Discharge Port Orientation Flexibility:
Offers eight different positions for optimal installation and operation.

Mechanical Seal Options:
Standard Carbon/Ceramic Buna, with optional Viton® (S10) and Teflon® (S11) seals for handling various chemicals and solvents.

Standard Footed NEMA 56J Jet Pump Motors:
Ensures compatibility and ease of installation with standard motors.

Multiple Motor Options:
Available in single-phase and three-phase configurations to suit different power requirements.

Pipe Size	Inlet: 1 1/4” (1.25"), Outlet: 1” (1.0")
Max Capacity	95 GPM (21.57 m³/h)
Max Head	70 ft (21 m)
Max Pressure	30 PSI (2 BAR)
Suction side	up to 15 ft (4.6 m)
Materials	Bronze construction, 416 stainless steel shafts
Temperature Range	Suitable for liquids up to 212°F (100°C)
Viscosity	Up to 2000 SSU (Saybolt Seconds Universal)

Model	HP	RPM	Voltage	Phase	Enclosure
700A-F13	1/3	3450	115v	Single Phase	ODP
700AP-F57	1/3	3450	220/440v	Three Phase	ODP
700B-J19	1/2	3450	115/230v	Single Phase	ODP
700BP-J57	1/2	3450	220/440v	Three Phase	ODP
700C-M19	3/4	3450	115/230v	Single Phase	ODP
700CP-M66	3/4	3450	208/220v	Three Phase	ODP
700D-T19	1 1/2	3450	115/230v	Single Phase	ODP
700DP-T57	1 1/2	3450	220/440v	Three Phase	ODP

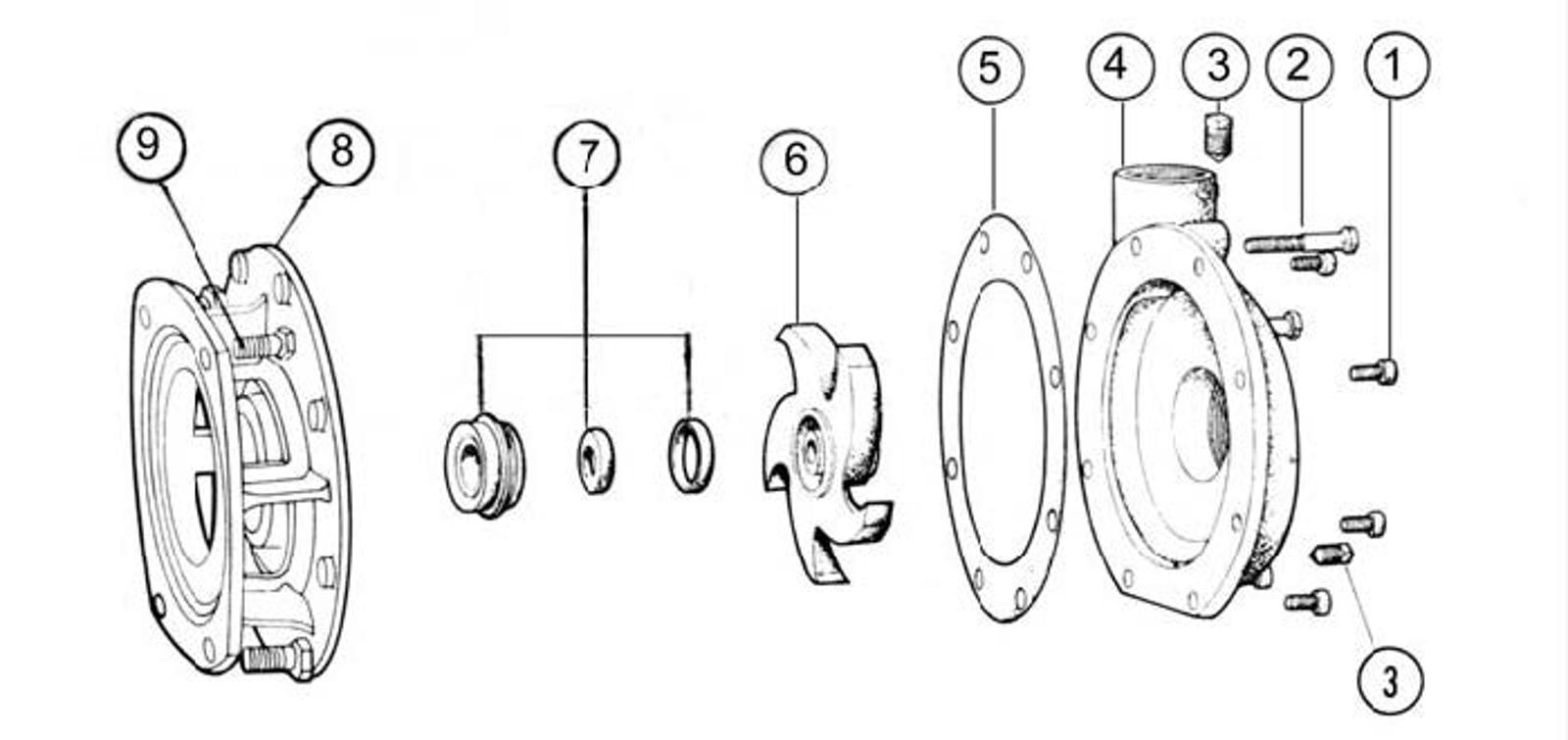

Item	Part Name	Quantity	OB700A	OB700AS10	OB700AS11	OB700AP	OB700APS10	OB700APS11
1	Screw	Qty. 5	OB978304	OB978304	OB978304	OB978304	OB978304	OB978304
2	Screw	Qty. 3	OB978314	OB978314	OB978314	OB978314	OB978314	OB978314
3	Pipe Plug	Qty. 1	OB5395	OB5395	OB5395	OB5395	OB5395	OB5395
4	Body	Qty. 1	OB5266	OB5266	OB5266	OB5266	OB5266	OB5266
5*	O-Ring	Qty. 1	OB9797-157	OB9797-157	OB9355-157S	OB9797-157	OB9797-157	OB9355-157S
6*	Impeller	Qty. 1	OB6075	OB6296	OB6296	OB6078	OB7195	OB7195
7*	Seal Assy	Qty. 1	OB32154	OB32210	OB32211	OB32154	OB32210	OB32211
8	Adapter	Qty. 1	OB5251	OB5251	OB6300	OB5251	OB5251	OB6300
9	Screw	Qty. 4	OB5411	OB5411	OB5411	OB5411	OB5411	OB5411
10*	Set Screw	Qty. 1	n/a	n/a	n/a	OB9849	OB9849	OB9849
12* **	Shims	As Req.	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03
-	Repair Kit	-	OB10697	OB11046	OB12272	OB10859	OB12271	OB12273

*Repair Kits contain items 5, 6, 7, 10 & 12.

**Item 12 is not depicted in the exploded assembly.

Item	Part Name	Quantity	OB700BS10	OB700BS11	OB700BP	OB700BPS10	OB700BPS11
1	Screw	Qty. 5	OB978304	OB978304	OB978304	OB978304	OB978304
2	Screw	Qty. 3	OB978314	OB978314	OB978314	OB978314	OB978314
3	Pipe Plug	Qty. 1	OB5395	OB5395	OB5395	OB5395	OB5395
4	Body	Qty. 1	OB5266	OB5266	OB5266	OB5266	OB5266
5*	O-Ring	Qty. 1	OB9797-157	OB9355-157S	OB9797-157	OB9797-157	OB9355-157S
6*	Impeller	Qty. 1	OB6297	OB6297	OB6519	OB7196	OB7196
7*	Seal Assy	Qty. 1	OB32210	OB32211	OB32154	OB32210	OB32211
8	Adapter	Qty. 1	OB5251	OB6300	OB5251	OB5251	OB6300
9	Screw	Qty. 4	OB5411	OB5411	OB5411	OB5411	OB5411
10*	Set Screw	Qty. 1	n/a	n/a	OB9849	OB9849	OB9849
12* **	Shims	As Req.	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03
-	Repair Kit	-	OB12274	OB12276	OB10860	OB12275	OB12277

*Repair Kits contain items 5, 6, 7, 10 & 12.

**Item 12 is not depicted in the exploded assembly.

Item	Part Name	Quantity	OB700C	OB700CS10	OB700CS11	OB700CP	OB700CPS10	OB700CPS11
1	Screw	Qty. 5	OB978304	OB978304	OB978304	OB978304	OB978304	OB978304
2	Screw	Qty. 3	OB978314	OB978314	OB978314	OB978314	OB978314	OB978314
3	Pipe Plug	Qty. 1	OB5395	OB5395	OB5395	OB5395	OB5395	OB5395
4	Body	Qty. 1	OB5266	OB5266	OB5266	OB5266	OB5266	OB5266
5*	O-Ring	Qty. 1	OB9797-157	OB9797-157	OB9355-157S	OB9797-157	OB9797-157	OB9355-157S
6*	Impeller	Qty. 1	OB6077	OB6180	OB6180	OB6520	OB7197	OB7197
7*	Seal Assy	Qty. 1	OB32154	OB32210	OB32211	OB32154	OB32210	OB32211
8	Adapter	Qty. 1	OB5251	OB5251	OB6300	OB5251	OB5251	OB6300
9	Screw	Qty. 4	OB5411	OB5411	OB5411	OB5411	OB5411	OB5411
10*	Set Screw	Qty. 1	n/a	n/a	n/a	OB9849	OB9849	OB9849
12* **	Shims	As Req.	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03
-	Repair Kit	-	OB10699	OB12278	OB12280	OB10861	OB11697	OB12281

*Repair Kits contain items 5, 6, 7, 10 & 12.

**Item 12 is not depicted in the exploded assembly.

Item	Part Name	Quantity	OB700D	OB700DS10	OB700DS11	OB700DP	OB700DPS10	OB700DPS11
1	Screw	Qty. 5	OB978304	OB978304	OB978304	OB978304	OB978304	OB978304
2	Screw	Qty. 3	OB978314	OB978314	OB978314	OB978314	OB978314	OB978314
3	Pipe Plug	Qty. 1	OB5395	OB5395	OB5395	OB5395	OB5395	OB5395
4	Body	Qty. 1	OB5266	OB5266	OB5266	OB5266	OB5266	OB5266
5	O-Ring	Qty. 1	OB9797-157	OB9797-157	OB9355-157S	OB9797-157	OB9797-157	OB9355-157S
6	Impeller	Qty. 1	OB5267	OB6179	OB6179	OB6521	OB7198	OB7198
7	Seal Assy	Qty. 1	OB32154	OB32210	OB32211	OB32154	OB32210	OB32211
8	Adapter	Qty. 1	OB5251	OB5251	OB6300	OB5251	OB5251	OB6300
9	Screw	Qty. 4	OB5411	OB5411	OB5411	OB5411	OB5411	OB5411
10*	Set Screw	Qty. 1	n/a	n/a	n/a	OB9849	OB9849	OB9849
12* **	Shims	As Req.	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03	OB602501, 02 or 03
-	Repair Kit	-	OB10700	OB12282	OB12284	OB10861	OB11729	OB12285

*Repair Kits contain items 5, 6, 7, 10 & 12.

**Item 12 is not depicted in the exploded assembly.
