82PB | Bronze Centrifugal Pedestal Pump

The Model 82PB Bronze Centrifugal Pump is a high-performance, durable pump designed to meet the demanding needs of various industrial applications. Constructed from premium bronze, this pump offers exceptional resistance to corrosion and wear, ensuring long-lasting reliability. Its robust design and versatile features make it suitable for handling a wide range of liquids, from water to chemicals, making it an indispensable tool in many industries. The pump's ease of maintenance and adaptability further enhance its appeal, providing users with a dependable and efficient solution for their fluid handling needs.

Durability: Made from high-quality bronze and stainless steel, the Model 82PB ensures long-term use and reliability. Its robust construction can withstand harsh conditions, making it a dependable choice for various applications.

Versatility: The pump's ability to handle a wide range of fluids and its customizable seals make it suitable for diverse applications and environments. Whether in industrial manufacturing, chemical processing, or marine applications, the Model 82PB delivers consistent performance.

Ease of Maintenance: Designed for easy maintenance and adaptability, the pump reduces downtime and operational costs. Its straightforward design allows for quick and efficient servicing, ensuring minimal disruption to operations.

Customizable Seals: With options for Viton® or Teflon® seals, the pump can be tailored to meet specific application needs. This customization enhances the pump's versatility and performance in different operating conditions.

Efficient Performance: The heavy-duty ball bearings and mechanical seals ensure smooth and efficient operation. The pump's design maximizes performance while minimizing energy consumption, providing an economical solution for fluid handling needs.

All Bronze or Lightweight Corrosion Resistant Aluminum:
The pump is available in either all-bronze construction or lightweight aluminum, both offering excellent corrosion resistance. This ensures the pump's longevity and reliability in various environments, including harsh and corrosive conditions.

Mechanical Face Type Seal:
Equipped with a mechanical face type seal, the pump provides a reliable seal to prevent leaks and maintain operational efficiency. This feature is crucial for maintaining the integrity of the pump and the fluid being handled.

Viton® or Teflon® Seals Available:
The pump can be customized with Viton® or Teflon® seals, depending on the specific application requirements. These seals enhance the pump's versatility, allowing it to handle a broader range of fluids and operating conditions.

Heavy Duty Ball Bearings:
Designed with heavy-duty ball bearings, the pump ensures smooth and reliable operation, even in demanding pulley drive applications. This feature contributes to the pump's overall durability and performance.

Stainless Steel Shaft:
The stainless steel shaft offers superior strength and resistance to wear and tear, further enhancing the pump's durability and reliability.

Field Convertible to Close Coupled Unit:
The pump can be easily converted to a close-coupled unit using a standard keyed shaft "C" flange motor. This adaptability makes it a versatile choice for various operational setups.

Flexible Operation:
The pump can be operated with the shaft in either horizontal or vertical positions, providing flexibility in installation and operation.

Pipe Size	1 1/2” Inlet, 1 1/4” Outlet
Max Capacity	100 GPM (22.7 m³/h)
Max Head	115 ft (35 m)
Maximum Temperature	212 °F (100 °C) (higher with Viton® or Teflon® seals)
Materials	Bronze, Stainless Steel
Rotation	Clockwise (facing the pump shaft)
Suction Lift	Capable of lifting up to 15 feet (4.6 m)
Viscosity Handling	Not recommended for highly viscous liquids; suitable for SAE 30 oil-like fluids

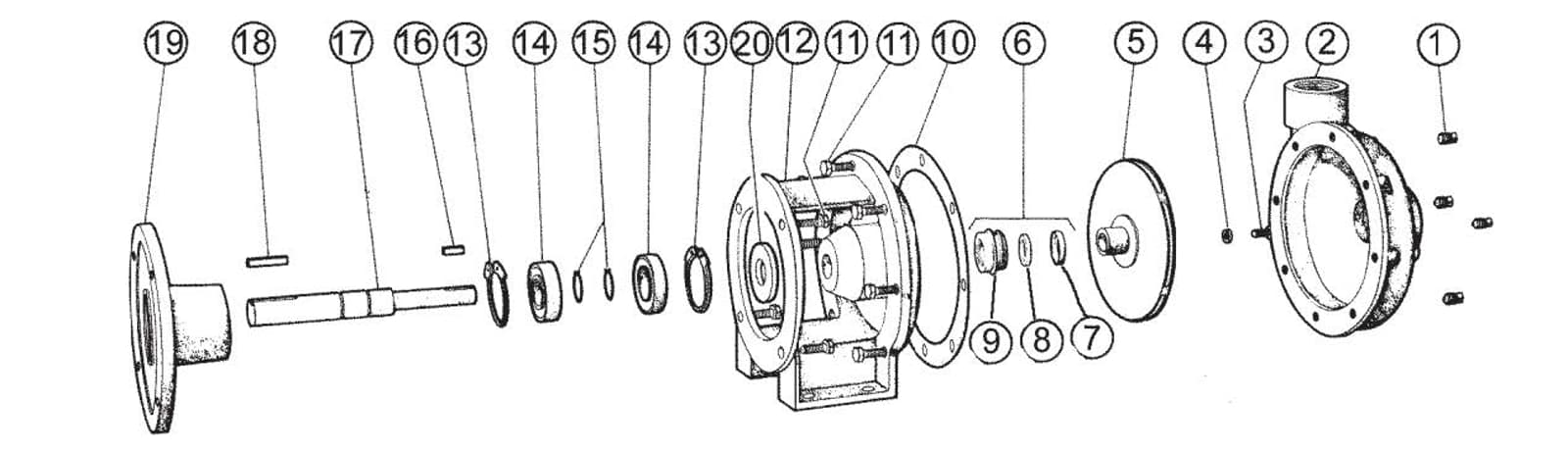

Item	Part Name	Quantity	OB82PB	OB82PBS-10	OB82PBS-11	OB82PB-07
1	Pipe Plug	Qty. 4	OB5395	OB5395	OB5395	OB5395
2	Body	Qty. 1	OB7585	OB7585	OB7585	OB7585
3	Screw	Qty. 1	OB7656	OB7656	OB7656	N/A
4	Lock Washer	Qty. 1	OB7395	OB7395	OB7395	N/A
5*	Impeller Assy	Qty. 1	OB32352	OB32352	OB32352	OB32001
6*	Seal Assy	Qty. 1	OB32346	OB32360	OB32211	OB32346
7*	Seal Seat	Qty. 1	OB7427	OB7644	N/A	OB7427
8**	Seal Wearface	Qty. 1	OB7426	OB7426	N/A	OB7426
9**	Seal Head	Qty. 1	OB2913	OB6141	N/A	OB2913
7 & 8	Seat/Wearfa-ce Sub Assy	Qty. 1	OB742601	OB742602	N/A	OB742601
10*	O-Ring	Qty. 1	OB 9797-163	OB 9797-163	OB 9355-163	OB 9797-163
11	Screws	Qty. 12	OB5411	OB5411	OB5411	OB5411
12	Adapter	Qty. 1	OB7586-1	OB7586-1	OB7910-1	OB7586-1
13	Ret. Ring	Qty. 2	OB6053	OB6053	OB6053	OB6053
14	Ball Bearing	Qty. 2	OB5884	OB5884	OB5884	OB5884
15	Ret. Ring	Qty. 2	OB5885	OB5885	OB5885	OB5885
16	Key	Qty. 1	OB7428	OB7428	OB7428	N/A
17	Shaft	Qty. 1	OB7455	OB7455	OB7924	OB2392
18	Key	Qty. 1	OB6845	OB6845	OB6845	OB6845
19	Bearing Plate	Qty. 1	OB7587	OB7587	OB7587	OB7587
20	Slinger	Qty. 1	OB7447	OB7447	OB7447	OB7447
-	Repair Kit*	-	OB10952	OB11453	N/A	OB12312

Repair Kit includes item numbers 5, 6, 7 & old version gasket (OB7425).

Item numbers 7, 8 & 9 (Seal Parts) are sold only as Seal Assembly (Item 6).
