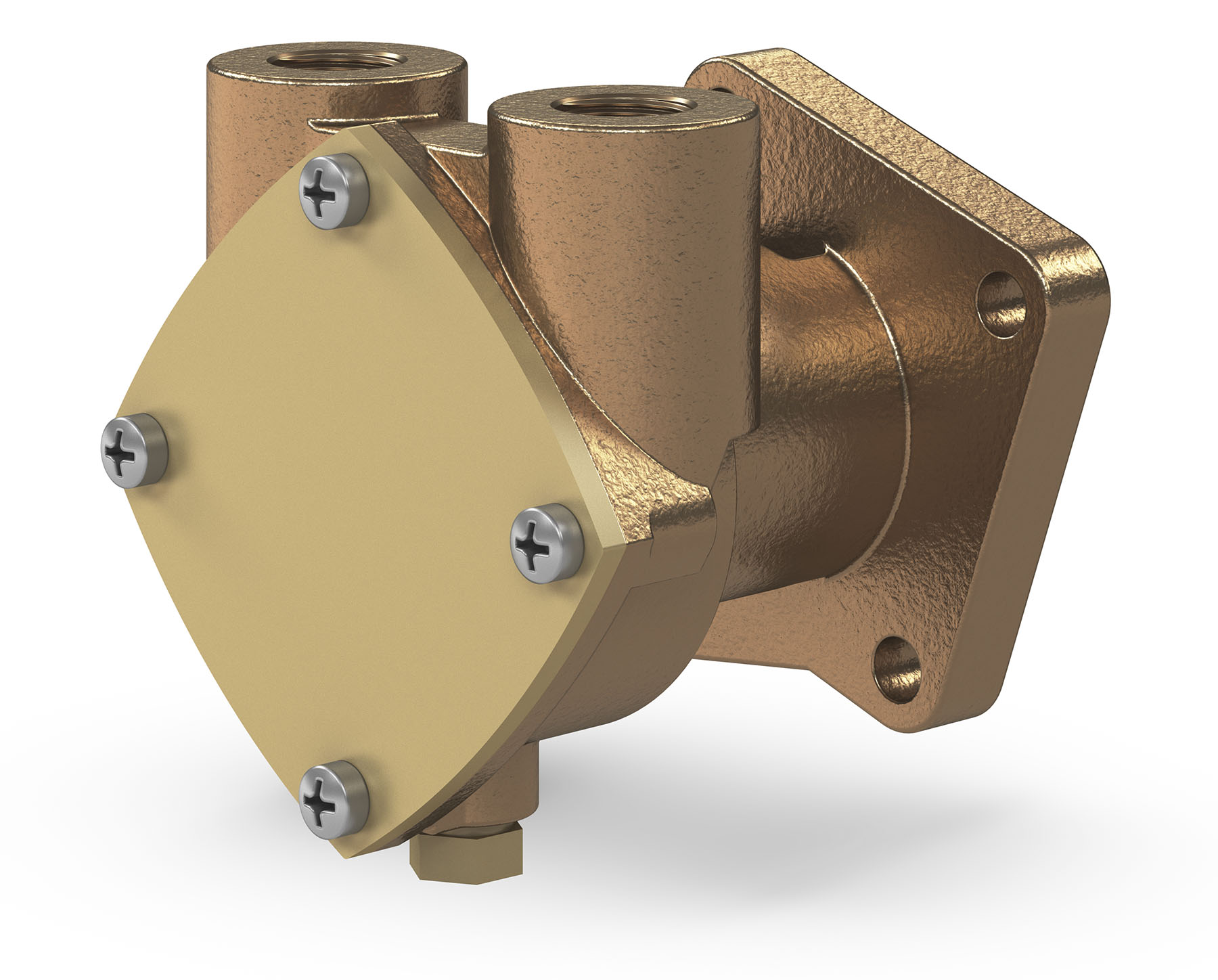

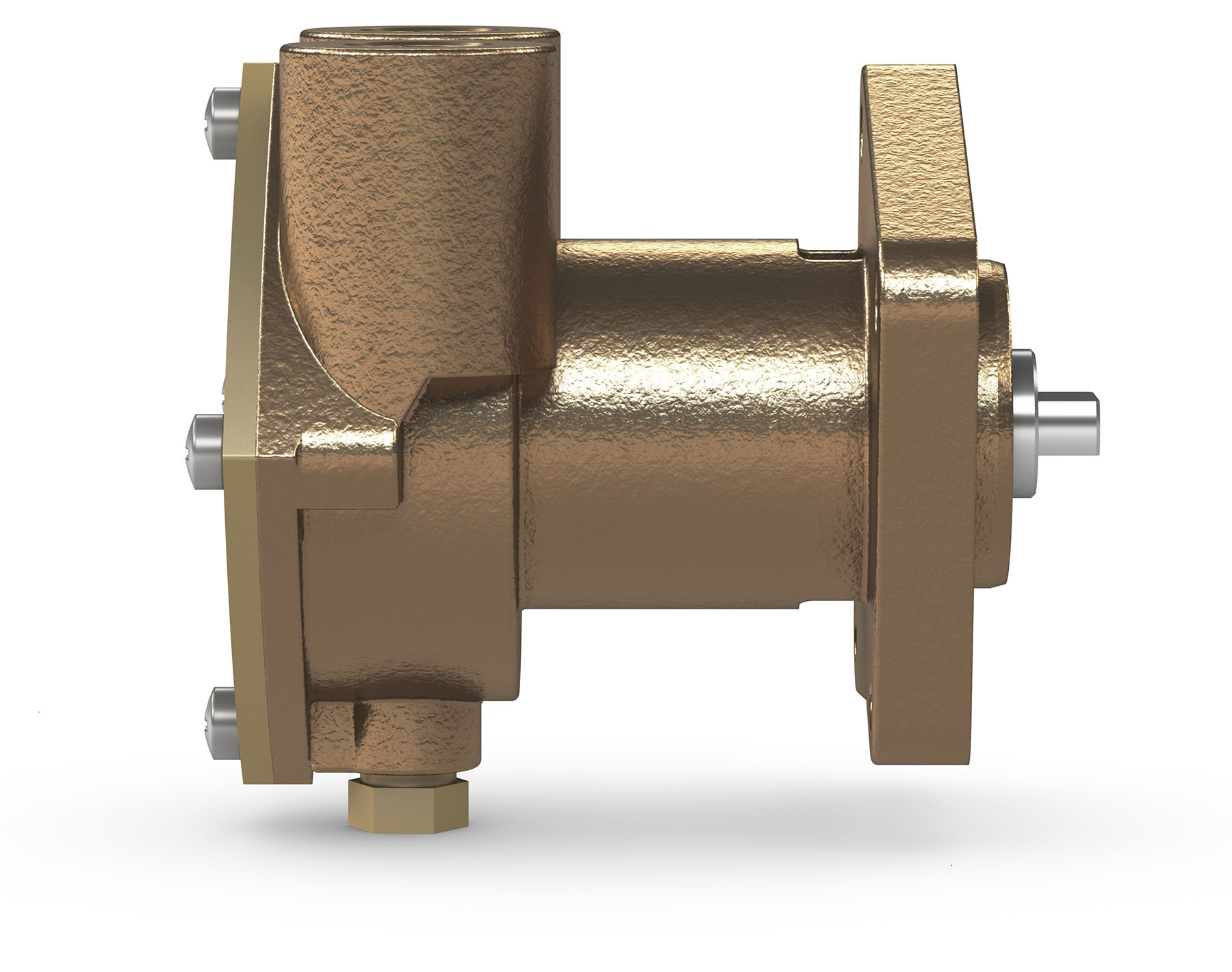

N202M | Bronze Flexible Impeller Pump

The N202M Series Bronze Rubber Impeller Pump is a high-performance, versatile solution designed to meet the demanding needs of marine and industrial applications. Engineered with rugged simplicity and superior corrosion resistance, this pump ensures reliable and long-lasting performance. Its convenient drain plug, flange mounting, and high chrome nickel stainless steel shaft make it an ideal choice for environments where durability and efficiency are paramount. Whether for cooling systems, water transfer, or industrial equipment, the N202M Series delivers exceptional functionality and ease of maintenance.

Features:

Durability: Built to last with high-quality materials and robust construction, ensuring long-term reliability and performance.

Versatility: Suitable for a wide range of applications, from marine to industrial and agricultural uses, making it a versatile choice for various needs.

Ease of Maintenance: Features like the convenient drain plug and easily replaceable impeller make maintenance straightforward, reducing downtime and operational costs.

Reliable Performance: Designed to deliver consistent and efficient performance in demanding environments, ensuring optimal operation and minimal disruptions.

Corrosion Resistance: Withstands harsh conditions, ensuring longevity and reliability, making it an ideal choice for marine and industrial applications.

High Efficiency: Engineered for efficient fluid transfer and cooling, contributing to the overall efficiency of the systems it supports.

Rugged Simplicity: The N202M Series is designed for straightforward operation and minimal maintenance, ensuring long-term reliability.

Corrosion Resistant: Constructed with high-quality materials that resist corrosion, this pump is built to withstand harsh marine and industrial environments.

Convenient Drain Plug: The integrated drain plug allows for easy draining and maintenance, reducing downtime and ensuring optimal performance.

Flange Mounting: Provides a secure and stable installation, making it suitable for various applications.

Slotted Shaft Drive or Male Tang Drive: Offers flexibility in installation and compatibility with a wide range of engines.

Two Separate Seals: Features main pump and flange mounting seals to prevent leaks and ensure efficient operation.

Vertical In & Out Ports: Designed for efficient fluid flow and easy installation, enhancing overall performance.

High Chrome Nickel Stainless Steel Shaft: Enhances durability and resistance to wear, ensuring long-lasting performance.

Easily Replaceable Impeller: Simplifies maintenance and reduces downtime, allowing for quick and easy impeller replacement.

Machined Cam: Ensures precise and efficient operation, contributing to the pump's overall reliability.

Flow Rate	Varies with model and RPM; detailed performance charts available. (Max 12 GPM / 2.72 m³/h)
Pressure	Handles various pressures; specific values in performance charts. (Max 26 PSI / 1.8 BAR)
Temperature Range	40 to 140°F (4 to 60°C)
Materials	Bronze, neoprene, high chrome nickel stainless steel
Suction Lift	Up to 15 feet (4.5 meters) when primed
Port Sizes	1/2" FNPT, 3/8" FNPT, 1" hose

Model	Ports Size	Cam	Flange	Pilot	Shaft	Designed For
N202M	1/2 FNPT	Vertical	FULL	2 BOLT	NONE	SLOT
N202M-03	3/8 FNPT	Vertical	HALF	2 BOLT	NONE	SLOT
N202M-07	3/8 FNPT	Vertical	FULL	2 BOLT	NONE	SLOT
N202M-11	1” HOSE	Vertical	FULL	4 BOLT	MALE TANG	Onan - Kubota
N202M-15	3/8 FNPT	Vertical	FULL	5 BOLT	MALE TANG	Universal Series - Super Mini Kubota Diesel
N202M-16	1/2 FNPT	Vertical	FULL	5 BOLT	MALE TANG	Universal Series - Super Mini Kubota Diesel
N202M-17	3/4 x 5/8 FNPT	135°	FULL	3 BOLT	MALE TANG	Kubota 05 Series - PTO
N202M-17P	3/4 x 5/8 FNPT	135°	FULL	2 BOLT	MALE TANG	Kubota V1505 (behind injection pump)
N202M-21	1/2 FNPT	Vertical	FULL	4 BOLT	MALE ROUND	PCI SGNSC Caterpillar Diesel - Pulley
N202M-23	1/2 FNPT	Vertical	FULL	2 BOLT	MALE TANG	Kubota 05 Series - Tach Mount
N202M-24	1/2 FNPT	Vertical	FULL	3 BOLT	MALE TANG	Kubota D902-E3B Side PTO

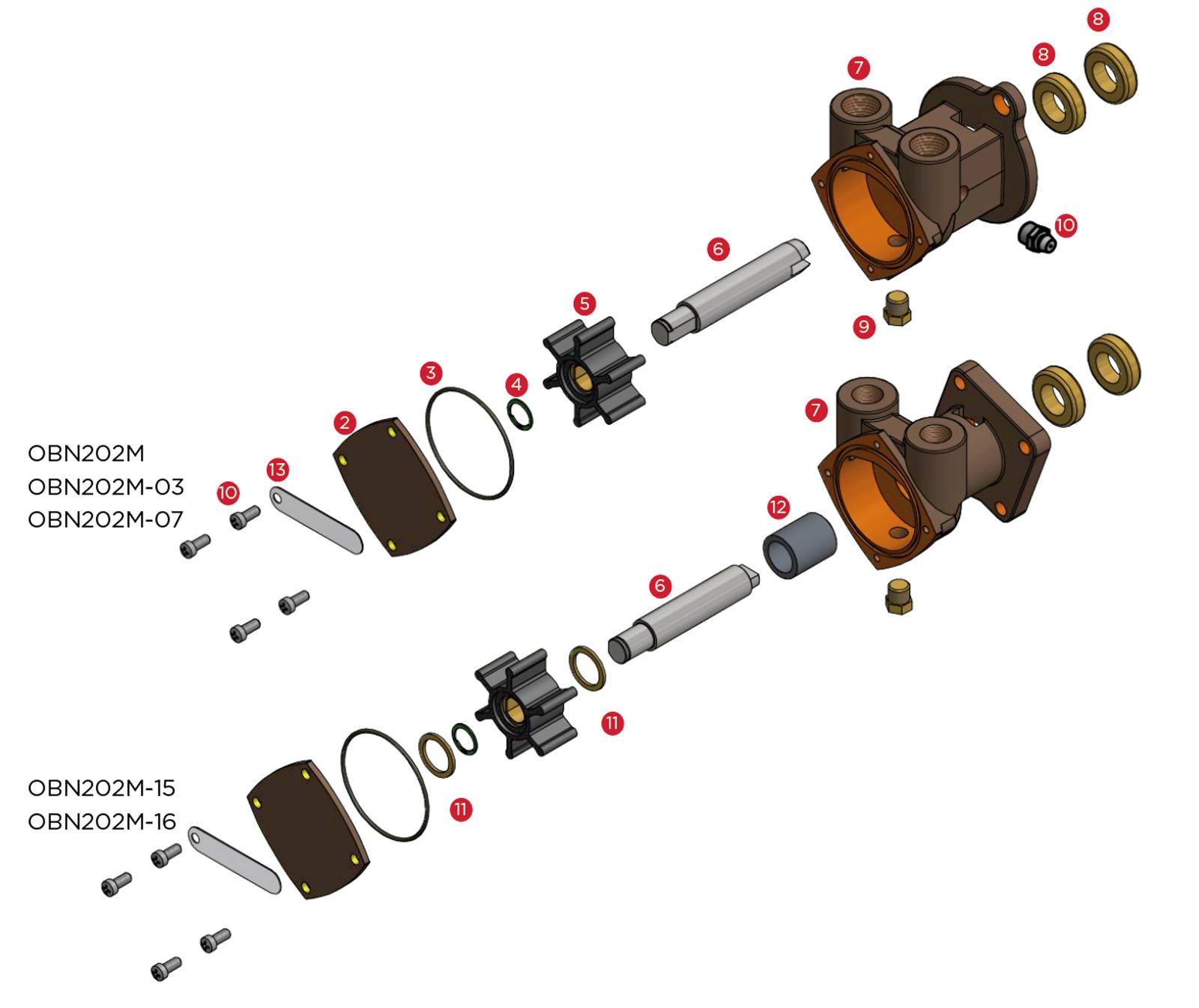

Item	Part Name	Quantity	OBN202M	OBN202M-03	OBN202M-07	OBN202M-15	OBN202M-16
1	Screw	4	OB5385	OB5385	OB5385	OB5385	OB5385
2	Cover	1	OB6597B	OB6597B	OB6597B	OB6597B	OB6597B
3*	O-Ring	1	OB9797-034	OB9797-034	OB9797-034	OB9797-034	OB9797-034
4*	Snap Ring	1	OB5373	OB5373	OB5373	OB5373	OB5373
5*	Impeller	1	OB6593	OB6593	OB6593	OB6593	OB6593
6	Shaft	1	OB6598	OB6598	OB6598	OB8767	OB8767
7	Body	1	OB6595-1	OB6892-2	OB6892-1	OB8920-1	OB9879-1
8*	Lip Seal	2	OB5463	OB5463	OB5463	OB5463	OB5463
9	Plug	1	OB6600	OB6600	OB6600	OB6600	OB6600
10	Grease Fitting	1	OB5390	OB5390	OB5390	N/A	N/A
11	Washer	2	N/A	N/A	N/A	OB9647	OB9647
12*	Bearing	1	N/A	N/A	N/A	OB5091	OB5091
13	Tag	1	OB7736	OB7736	OB7736	OB7736	OB7736
-	Repair Kit	-	OB10725	OB10725	OB10725	OB11691	OB11691

*Repair Kit contains items 3, 4, 5, 8, 12

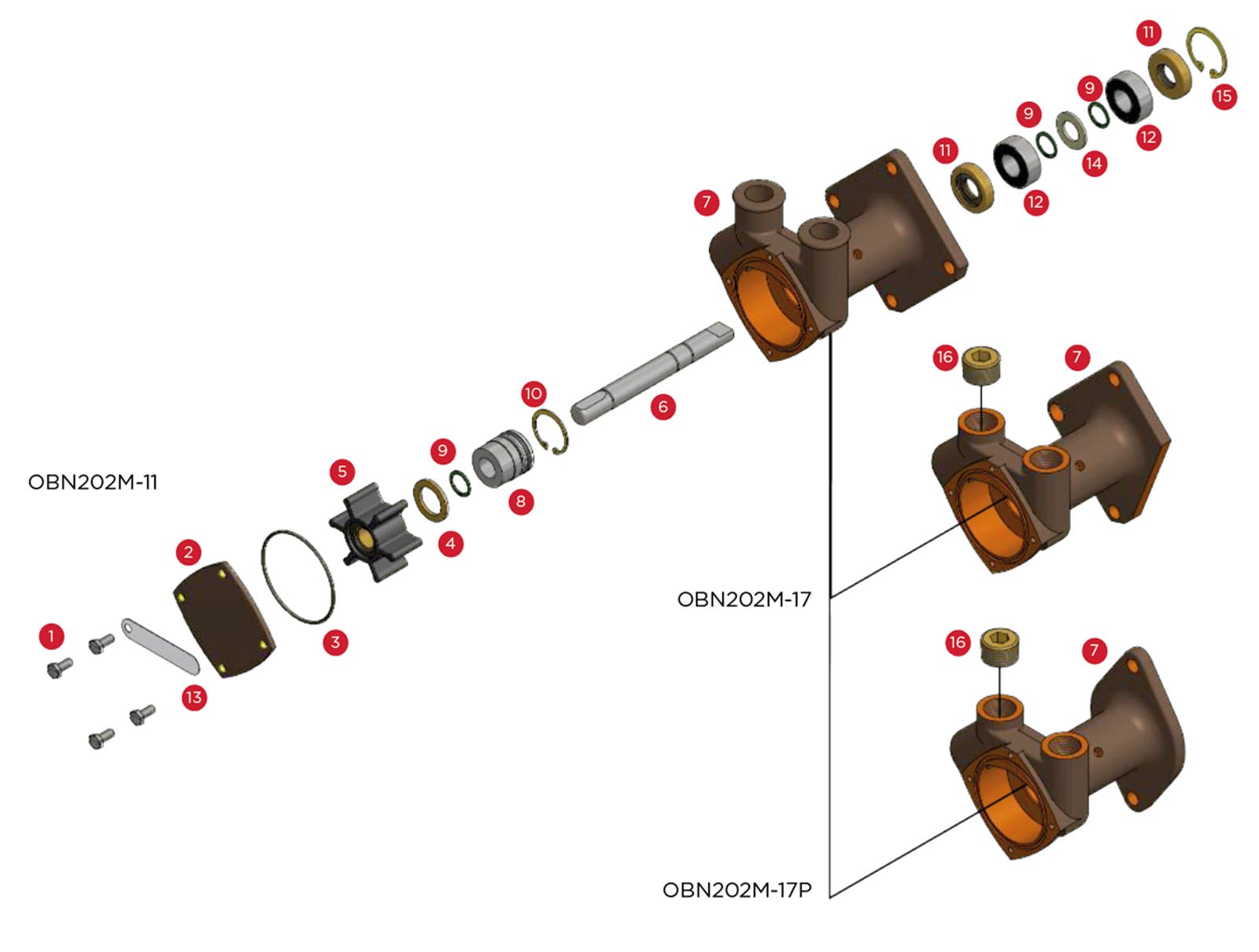

Item	Part Name	Quantity	OBN202M-11	OBN202M-17	OBN202M-17P
1*	Screw	4	OB8907-1	OB5385	OB5385
2	Cover	1	OB6597B	OB6597B	OB6597B
3*	O-Ring	1	OB9797-034	OB9797-034	OB9797-034
4	Washer	1	OB8927	OB8927	OB8927
5*	Impeller	1	OB6593	OB6593	OB6593
6*	Shaft	1	OB8870	OB8870	OB8870
7	Body	1	OB8869-02	OB9887-2	OB9887-3
8*	Seal Assy	1	OB32592	OB32592	OB32592
9*	Snap Ring	3	OB5373	OB5373	OB5373
10*	Snap Ring	1	OB7639	OB7639	OB7639
11*	Lip Seal	2	OB8868	OB8868	OB8868
12	Ball Bearing	1	OB5847	OB5847	OB5847
13	Tag	1	OB7736	OB7736	OB7736
14	Slinger	1	OB8874	OB8874	OB8874
15	Snap Ring	1	OB7557	OB7557	OB7557
16	Pipe Plug	1	N/A	OB7443	OB7443
-	Repair Kit	-	OB11679

*Repair Kit contains items 1, 3, 5, 6, 8, 9, 10, 11, 12, 14 & 15

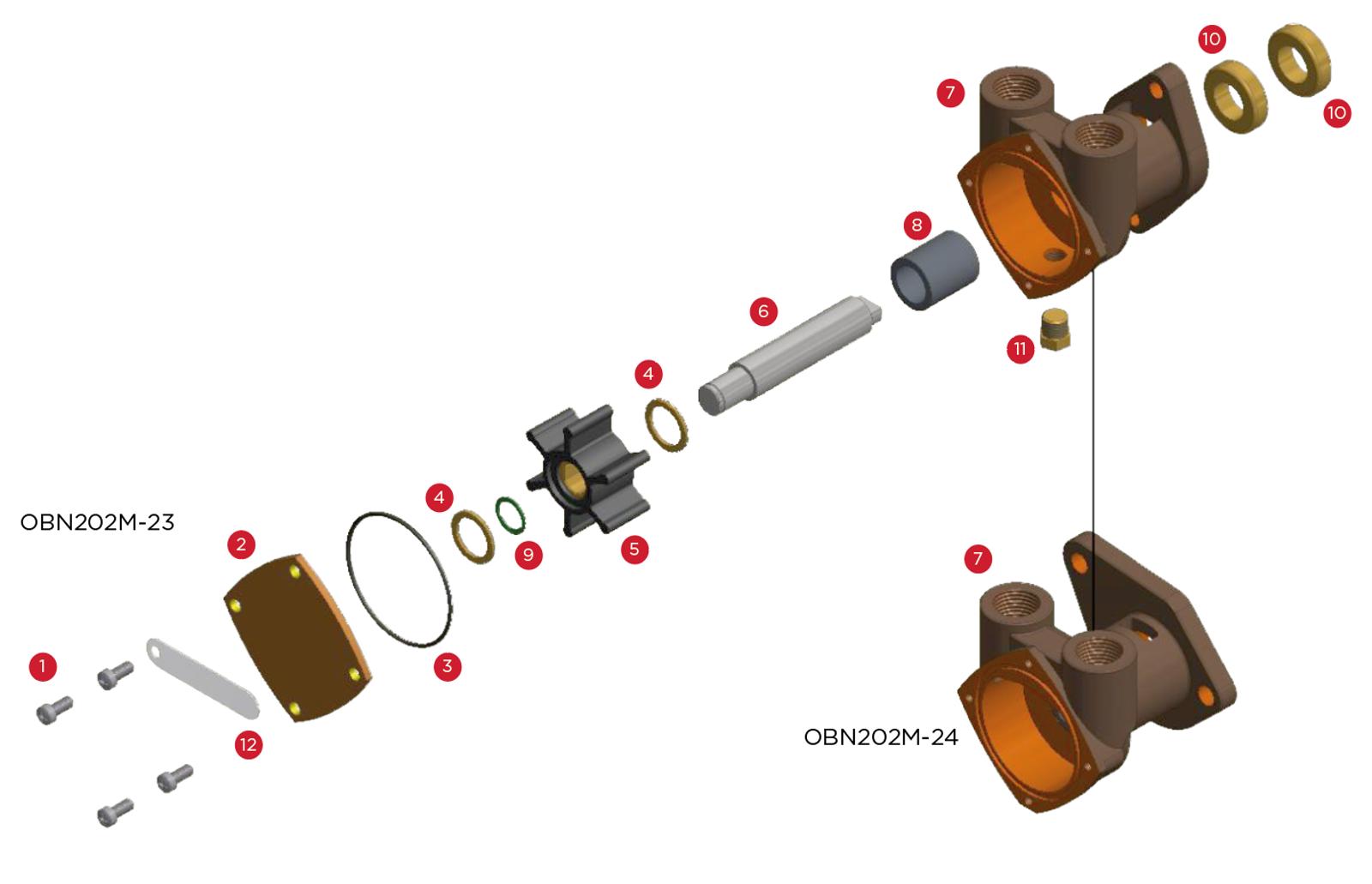

Item	Part Name	Quantity	OBN202M-23	OBN202M-24
1	Screw	4	OB5385	OB5385
2	Cover	1	OB6597B	OB6597B
3*	O-Ring	1	OB9797-034	OB9797-034
4	Washer	2	OB9647	OB9647
5*	Impeller	1	OB6593	OB6593
6	Shaft	1	OB8767	OB8767
7	Body	1	OB2196	OB3458
8*	Bearing	1	OB5091	OB5091
9*	Snap Ring	1	OB5373	OB5373
10*	Lip Seal	2	OB5463	OB5463
11	Pipe Plug	2	OB6600	N/A
12	Tag	1	OB7736	OB7736
-	Repair Kit	-	OB11691	OB11691

*Repair Kit contains items 3, 5, 8, 9, & 10

Item	Part Name	Quantity	OBN202M-21
1*	Screw	4	OB5385
2	Cover	1	OB6597B
3*	O-Ring	1	OB9797-034
4	Washer	1	OB8927
5*	Impeller	1	OB6593
6*	Shaft & Bearing	1	OB2796
7	Body	1	OB9275-01
8*	Seal Asembly	1	OB32592
9*	Snap Ring	1	OB5373
10*	Snap Ring	1	OB5741
-	Repair Kit	-	OB12198

*Repair Kit contains items 1, 3, 5, 6, 8, 9, & 10

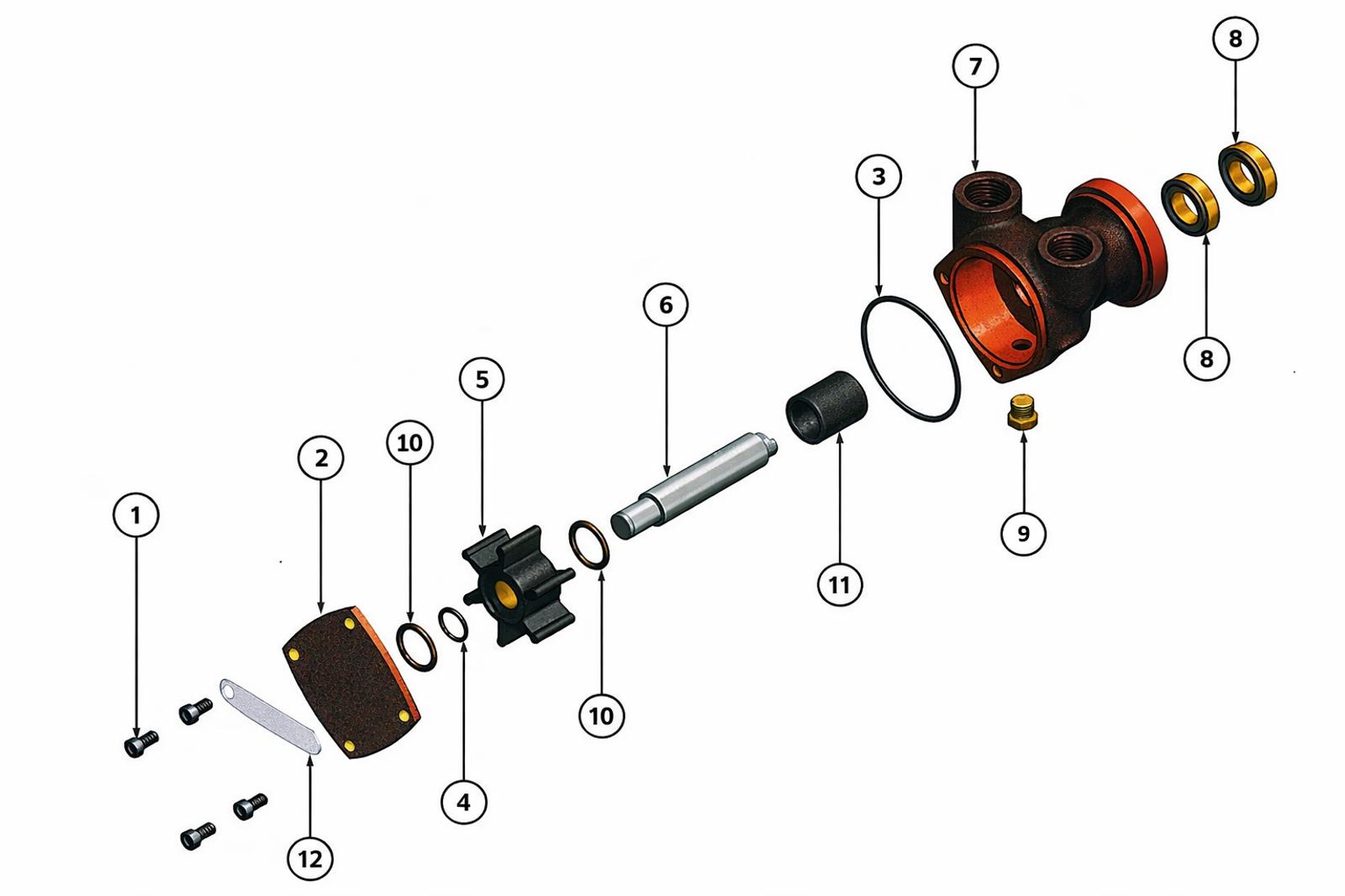

Item	Part Name	Quantity	OBN202M-908
1	Screw	Qty. 4	OB5385
2	Cover	Qty. 1	OB6597b
3*	O-Ring	Qty. 1	OB9797-034
4*	Snap Ring	Qty. 1	OB5373
5*	Impeller	Qty. 1	OB6593
6	Shaft	Qty. 1	OB8767
7	Body	Qty. 1	OB3691
8*	Lip Seal	Qty. 2	OB5463
9	Plug	Qty. 1	OB6600
10	Washer	Qty. 2	OB9647
11*	Bearing	Qty. 1	OB5091
12	Tag	Qty. 1	OB7736
-	Repair Kit	-	OB11691

*Repair Kit contains items 3, 4, 5, 8, 11

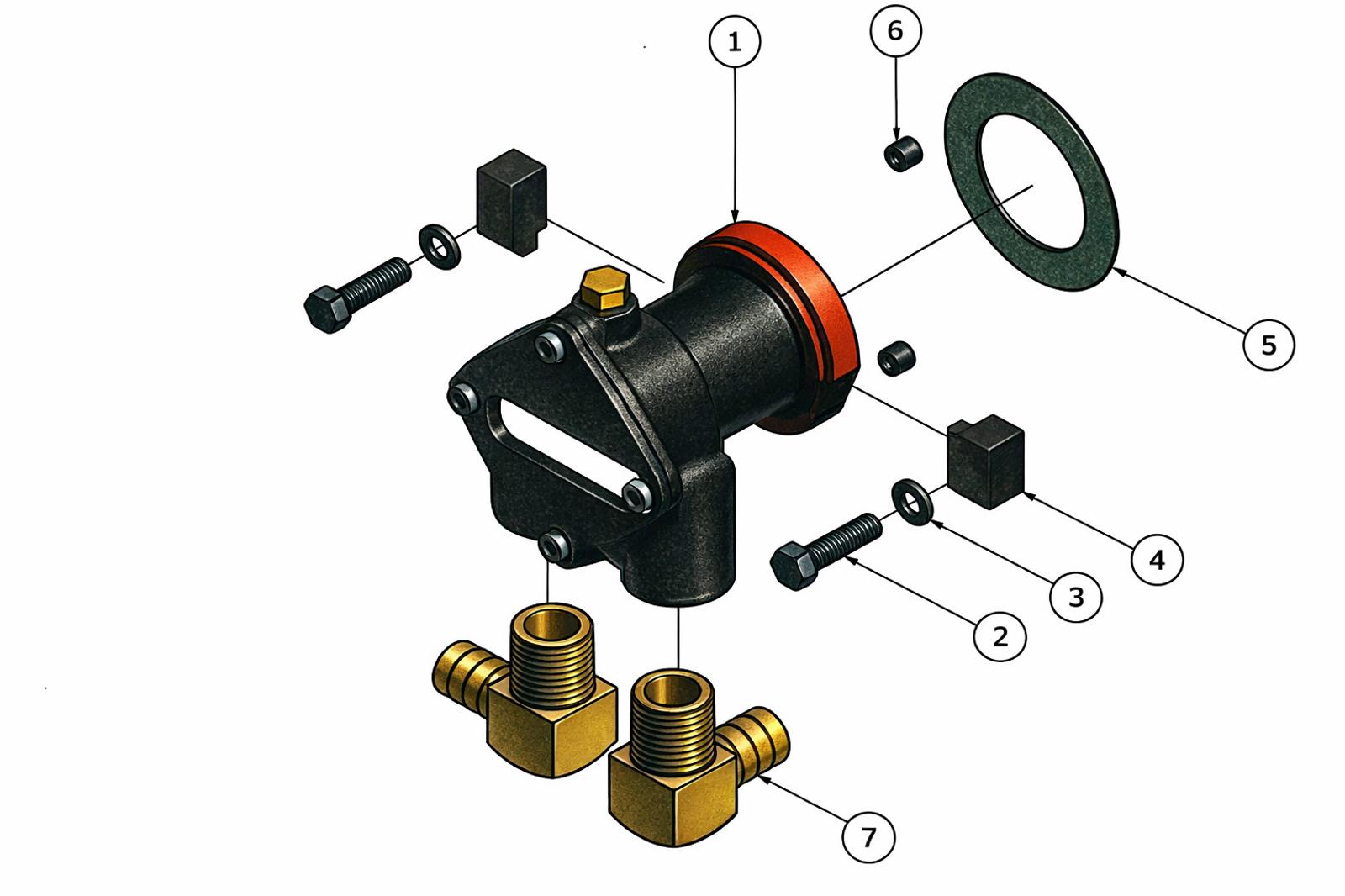

Item	Part Name	Quantity	OBN202M-837
1	Rubber Impeller Pump	Qty. 1	OB5385
2*	Cap Screw	Qty. 2	OB6597b
3*	Lock Washer	Qty. 2	OB9797-034
4*	"L" Clamp	Qty. 2	OB5373
5*	Mounting Gasket	Qty. 2	OB6593
6*	Set Screw	Qty. 2	OB8767
7*	Elbow Fitting	Qty. 2	OB3691
