S4000L
Back to the product list

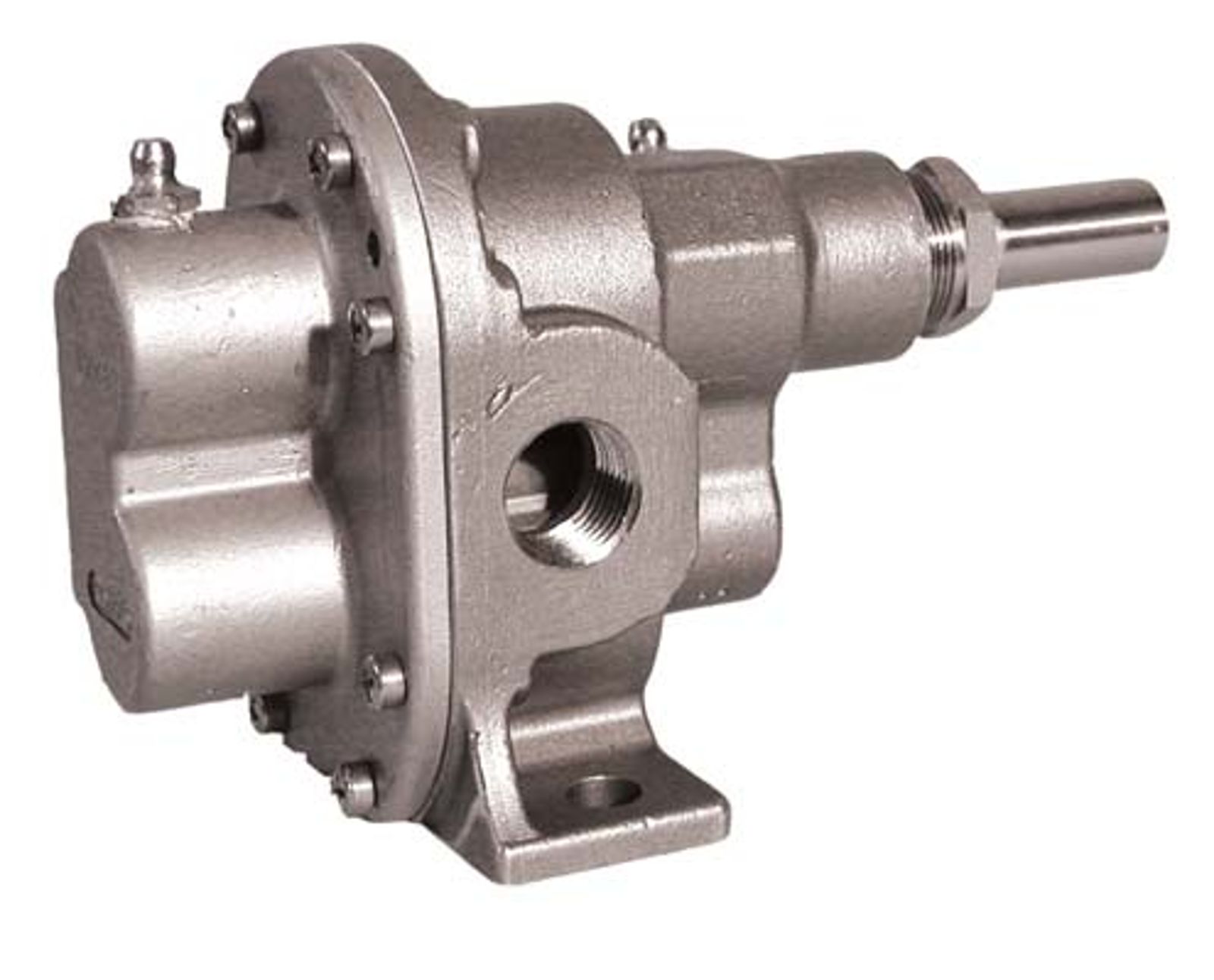

S4000L - Pedestal Rotary Gear Pump

The S4000L is a high-performance stainless steel rotary gear pump engineered for demanding food-grade applications, especially maple syrup filter press systems. Designed as a direct drop-in replacement for the N4000L model, this pump offers superior durability, chemical resistance, and operational flexibility. Its rugged construction and food-safe materials make it ideal for handling abrasive sugar sand, filter aids, and high-temperature fluids up to 220°F (104°C).

Advantages:

  • Engineered for Maple Syrup Processing: Specifically tailored for filter press systems.

  • Superior Durability: Withstands abrasive materials like sugar sand and filter aids.

  • Food-Safe Materials: Meets stringent food-grade standards.

  • Flexible Installation: Operates in any direction and orientation.

  • Low Maintenance: Features high-quality components and easy lubrication access.

  • Reliable Performance: Positive displacement design ensures consistent flow and pressure.

  • Stainless Steel Construction:
    Investment cast stainless steel housing ensures long-lasting durability and corrosion resistance.

  • Food-Grade Certified:
    Fully compliant with "Biofood" standards, safe for use in food processing environments.

  • Drop-In Replacement:
    Seamlessly replaces the N4000L model without modifications.

  • Versatile Operation:
    Can operate in either rotation direction and be mounted in any orientation.

  • High-Temperature Tolerance:
    Handles raw sap up to 220°F (104°C).and hot water flushing at 140°F (60°C).

  • Graphitized Silicon Carbide Bearings:
    Provide excellent wear resistance and extended service life.

  • Hardened Stainless Steel Shafts and Gears:
    Enhance strength and reduce maintenance needs.

  • Viton O-Ring and Teflon Packing:
    Ensure leak-free performance and chemical compatibility.

  • Self-Priming with Suction Lift:
    Capable of lifting fluids up to 20 feet (6.1 m) on the suction side.

  • Lubrication Fittings Included:
    Simplifies maintenance and extends operational life.

Port Size

1/2” NPT

Flow Rate Range

2.3 to 10.56 GPM (8.7 to 40 LPM), depending on RPM and pressure

Pressure Range

Up to 150 PSI (10.3 bar) with lubricating fluids

Temperature Range

Up to 220°F (104°C) for sap; 140°F (60°C) for hot water flushing

Suction Lift Capability

Up to 20 feet (6 m)

Material

Stainless steel housing, shafts, and gears; Viton O-ring; Teflon-packed seals

Bearings

Graphitized silicon carbide sleeve bearings

Relief Valve Requirement

External relief valve recommended for system protection
