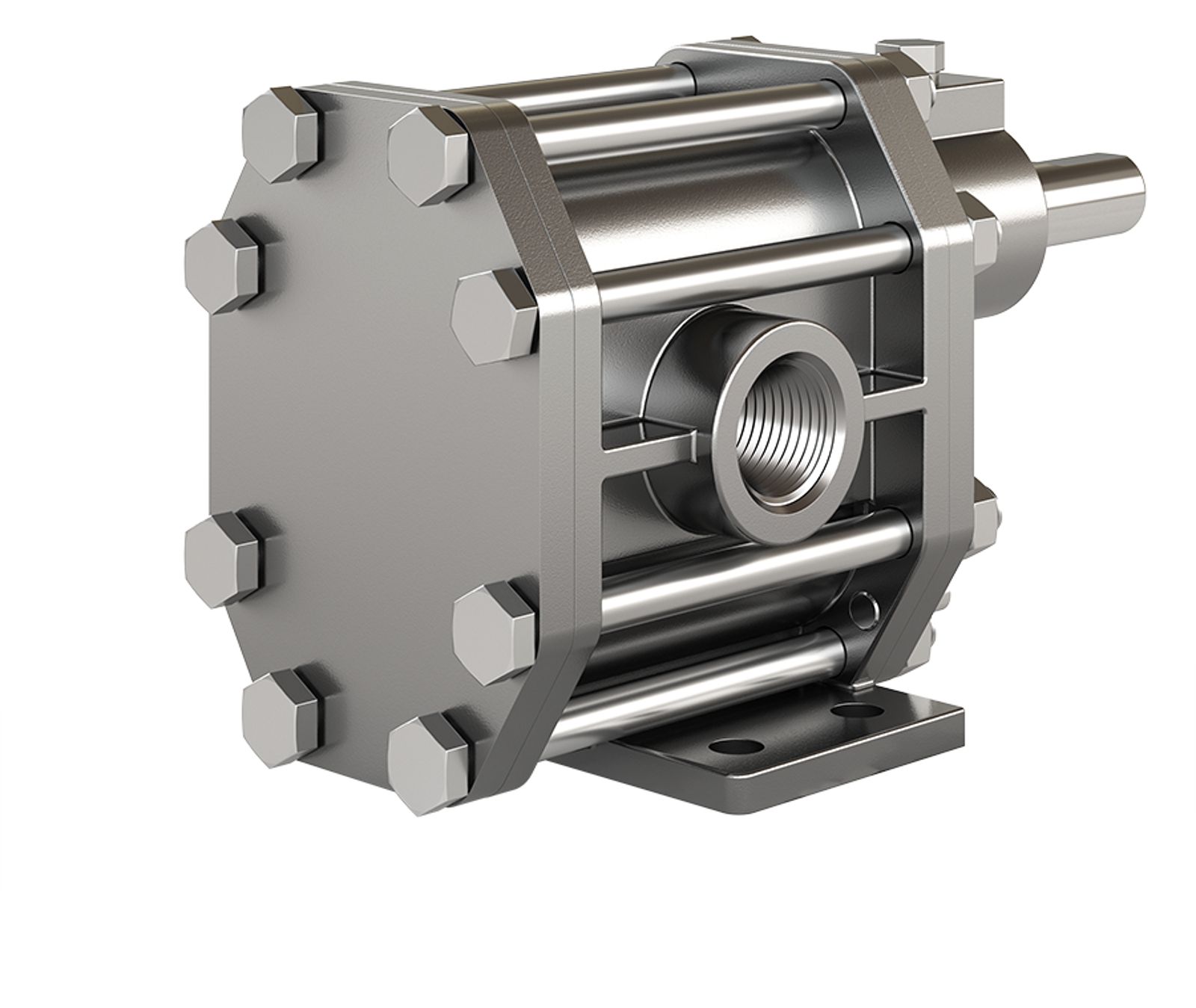

Product Image - Chemsteel S417 ISO

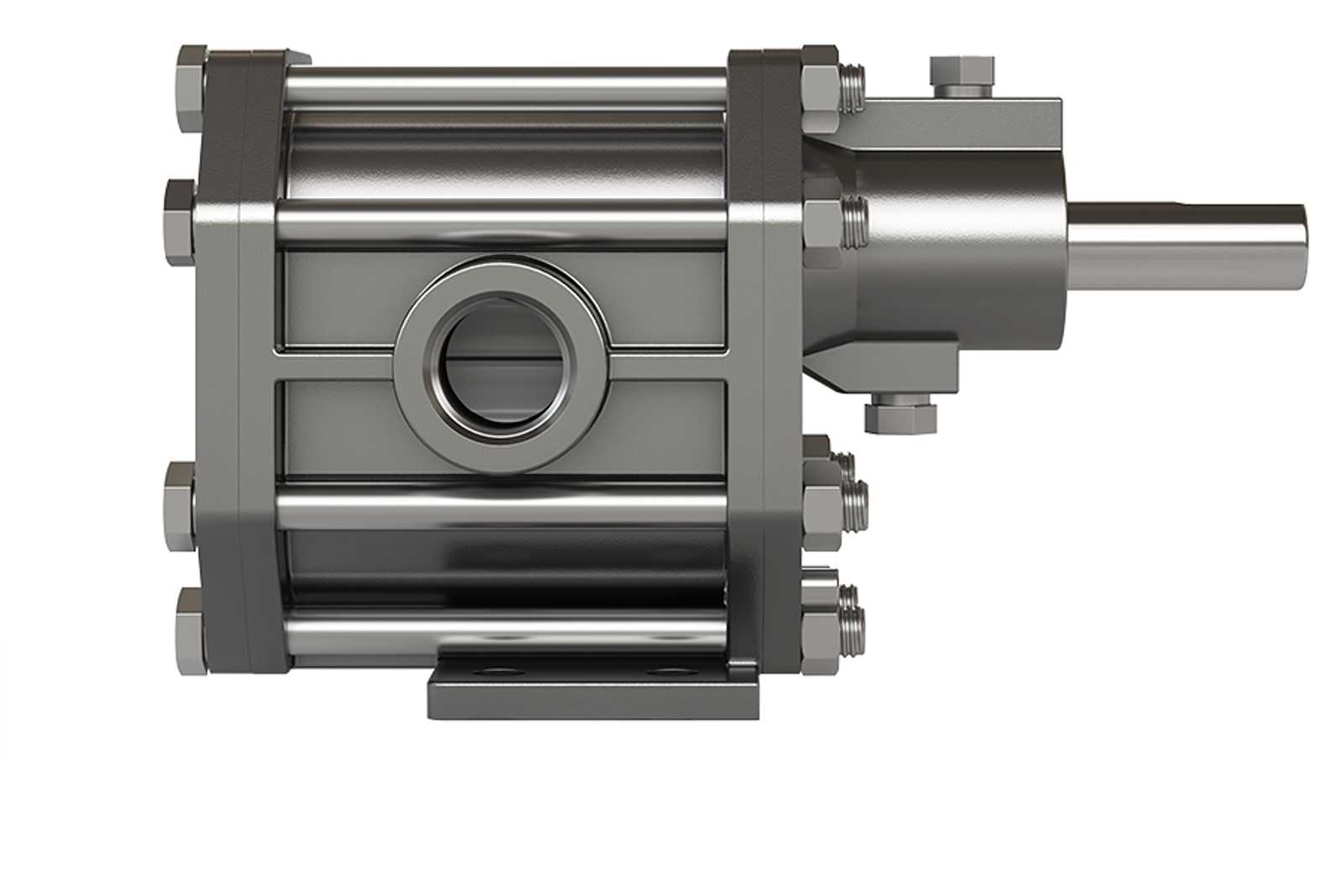

Product Image - Chemsteel S417 SIDE
Product Image - Chemsteel CUT (SXXX)
Product Image - Chemsteel S417 ISO
Product Image - Chemsteel S417 SIDE
Product Image - Chemsteel CUT (SXXX)
Back to the product list

Chemsteel S923 | Chemical Gear Pump

The Chemsteel S923 Gear Pump is engineered for precision and durability in handling both common and highly corrosive liquids under pressure. Designed with high-grade materials and advanced sealing technology, this pump ensures purity, prevents contamination, and delivers reliable performance in demanding industrial environments. Its compact, three-section construction and bi-directional operation make it a versatile solution for a wide range of fluid transfer applications.

Advantages:

  • Exceptional chemical resistance for harsh environments

  • Quiet and efficient operation with helical gears

  • Flexible installation with global motor frame compatibility

  • Long service life with optimized wear surfaces and hydraulic porting

  • Easy to maintain with modular design and available CHEMkit™ repair kits

  • Trusted by industries worldwide for critical fluid handling applications

  • Corrosion-Resistant Construction:
    Built with stainless steel or Alloy C housing and components, ensuring long-term resistance to aggressive chemicals.

  • Versatile Gear Options:
    Gears available in 316 stainless steel, Alloy C, PTFE, and PEEK for compatibility with various fluids.

  • Advanced Sealing System:
    Elastic memory O-rings and multiple seal options (lip, packing, mechanical) prevent leaks and ensure safe operation.

  • Quiet Operation:
    Helical gearing reduces noise levels by up to 10 dB, enhancing workplace comfort.

  • Bi-Directional Flow:
    Supports reversible flow for flexible system integration.

  • Easy Maintenance:
    Three-part housing and full-size bearings simplify disassembly and servicing.

  • Global Compatibility:
    Metric hardware and adapters fit both NEMA and IEC motor frames.

Maximum Flow @ 1750 RPM

15 GPM / 56.8 LPM

Theoretical Displacement

38.4 cc/rev

Max Differential Pressure

150 psig / 10.3 bar

Max System Pressure

225 psig / 15.5 bar

Max Speed

1800 RPM

Fluid Temperature Range

-50°F to 450°F / -46°C to 232°C

NPSHR @ 1750 RPM

2 ft / 0.6 m

Port Size

1 1/2" FNPT / 1 1/2" BSPT

Weight

10 lbs / 4.5 kg



Special materials combinations are available for specific liquids:

  • Stainless or Alloy C housing construction.

  • Gears available in 316 stainless, Alloy C. Also in PTFE White and Polyetheretherketone.

  • Shafts are 316 stainless steel or Alloy C.

  • Bearings available in carbon or PTFE White or PTFE Red.

  • Full range of seal options including lip seal, packing and mechanical designs.

Data Sheet - S923 M [EN] (dual units).png

Data Sheet - S923 [EN] (dual units)

Data Sheet, English, Dual Units
I and O - Chemical Gear Pumps [EN].png

I and O - Chemical Gear Pumps [EN]

IOM, English
I and O - Chemsteel Sealed Rotary Gear Pumps [EN].png

I and O - Chemsteel Sealed Rotary Gear Pumps [EN]

IOM, English
Leaflet - Chemkit.pdf - Adobe Acrobat (64-bit).png

Leaflet - Chemkit

Leaflet, English
Pump Selection Guide - Chemsteel [EN].png

Pump Selection Guide - Chemsteel [EN]

Guide, English

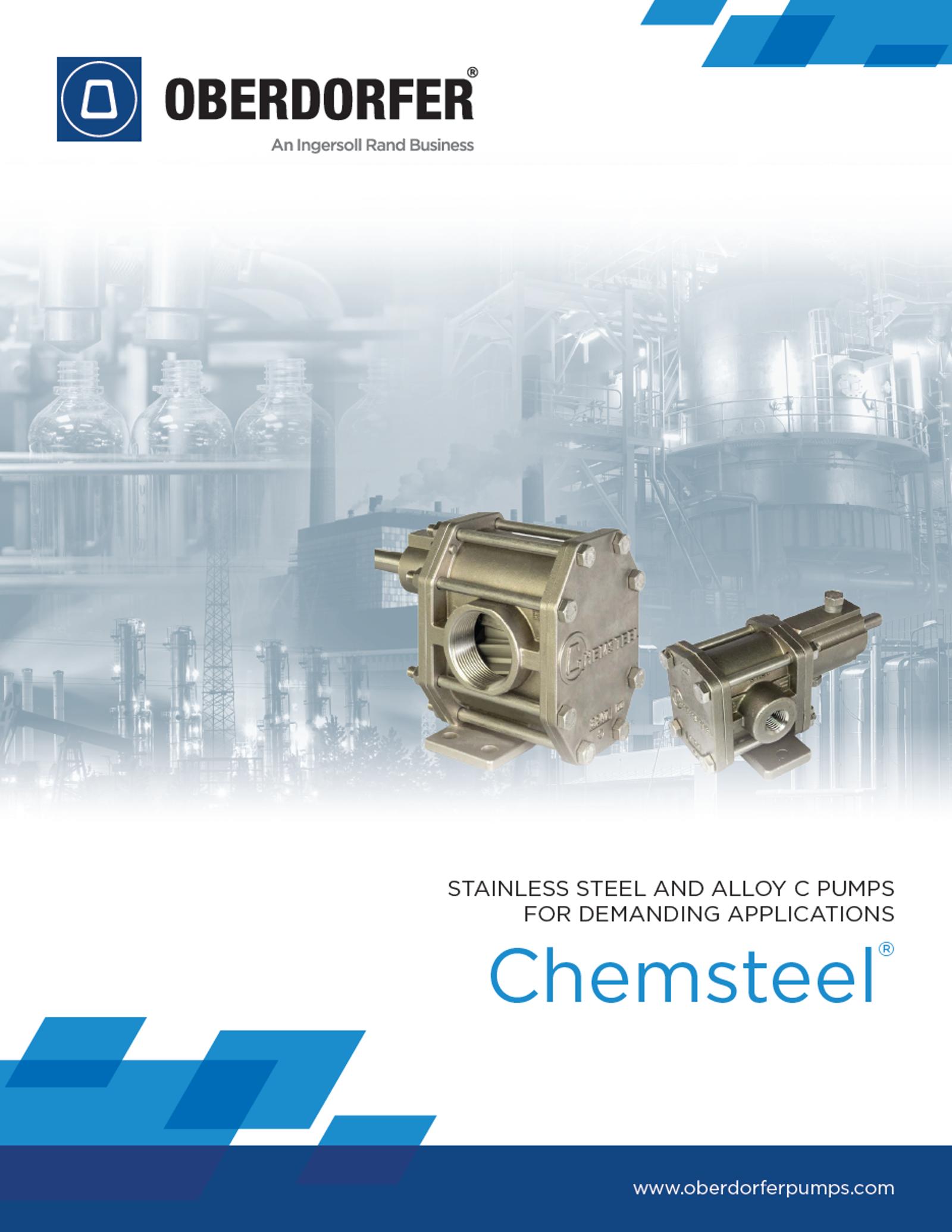

Brochure - Chemsteel.png

Brochure - Chemsteel [EN] (dual units)

Brochure, Chemsteel
Brochure - Chemsteel H [ENG].png

Brochure - Chemsteel H [EN]

Brochure, English
