- Magnetic Drive Technology – Leak-Free and Safe
The sealless magnetic coupling eliminates the need for traditional shaft seals, eliminating one of the most common failure points in pumping systems — perfect for flammable, toxic, or reactive fluids. - Engineered for Extreme Chemical Resistance
Constructed from high-grade 316 stainless steel or corrosion-resistant Alloy C, with wetted components available in PTFE, PEEK, PPS, and carbon — built to withstand aggressive solvents, acids, and caustics. - Quiet, Low-Vibration Operation
Precision helical gears reduce system noise by up to 10 dB and ensure smoother fluid delivery with minimal wear and vibration. - Customizable Flow Performance
Gear and bearing assemblies can be modified to fine-tune flow rates and pressure — ideal for OEM applications and specialized fluid handling systems. - Broad Temperature Compatibility
Operates in fluid temperatures ranging from -50°F to 450°F (-46°C to 232°C), making it well-suited for both cryogenic and high-temperature thermal management processes. - Service-Friendly Modular Design
Three-piece housing with O-ring seals allows for quick disassembly and reassembly without special tools, reducing downtime and simplifying maintenance. - Universal Motor Mount Options
Compatible with both NEMA and IEC motor frames. Standard 3/4” FNPT or BSPT ports and metric hardware ensure easy integration across global installations. - Flexible Seal and Bearing Choices
Select from carbon or PTFE bearings and various mechanical, lip, or packing seals to match media compatibility and system pressure requirements. - Optimized Hydraulic Design
Slotted bearings and optional port configurations reduce cavitation risk and improve flow stability in low NPSH conditions.

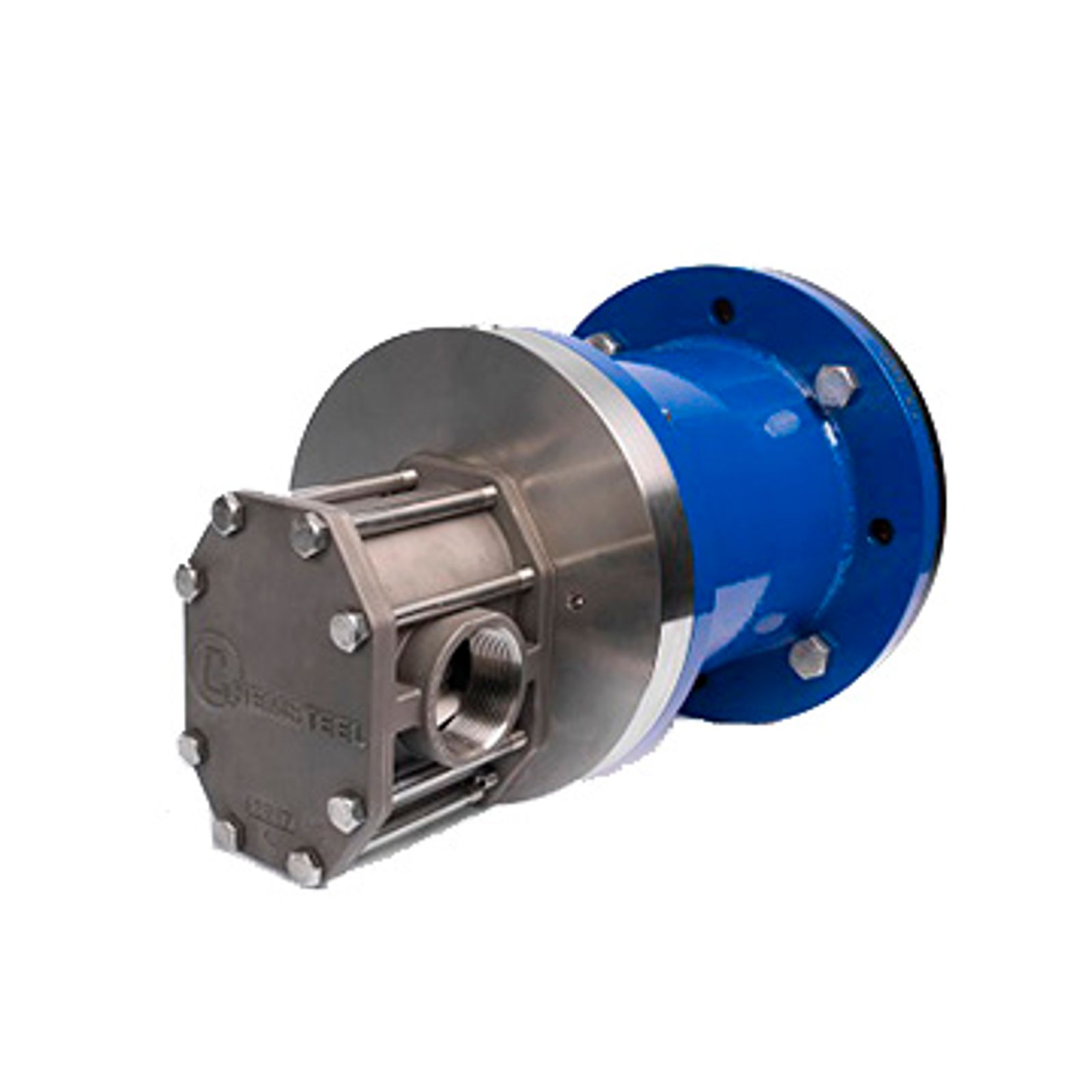

The Chemsteel™ SM417 MH Magnetic Drive Gear Pump is a rugged, precision-engineered pump designed to handle aggressive, hazardous, or ultra-pure fluids under pressure with zero leakage. Ideal for use in chemical processing, OEM systems, laboratories, and industrial installations, this pump delivers quiet, efficient, and reliable fluid transfer, even in the most extreme environments.
With its sealless magnetic drive, chemically resistant materials, and flexible mounting options, the SM417 ensures maximum uptime, superior containment, and global system compatibility — making it the ideal solution for mission-critical pumping operations. Additionally, CHEMSTEEL™ pumps offer bi-directional operation for applications requiring reversing flow.
Features
- Zero Leakage Performance
Magnetic drive ensures safe containment of even the most volatile or hazardous fluids - Long-Lasting Durability
Material options and robust bearing design extend service life - Quiet and Clean Operation
Ideal for sensitive environments like labs and cleanrooms - Global Integration
Easily connects with NEMA or IEC motors worldwide - Simplified Maintenance
Modular design and optional CHEMkit™ repair kits reduce maintenance time and cost - Precision You Can Trust
Engineered tolerances and flow control deliver consistent, reliable performance
Looking for a corrosion-resistant magnetic gear pump with precision control, global compatibility, and zero-leak reliability?
The Chemsteel™ SM417 is your go-to solution for advanced chemical transfer and OEM fluid handling systems.
Pump Type | External gear, magnetic drive, sealless |
Max Flow Rate | 10 GPM (37.9 LPM) at 1750 RPM |
Theoretical Displacement | 27.0 cc/rev |
Max Differential Pressure | 110 psi (7.6 bar) |
Max System Pressure | 225 psi (15.5 bar) |
Temperature Range | -50°F to 450°F (-46°C to 232°C) |
Max Speed | 1800 RPM |
NPSHR | 6 ft (1.8 m) at 1750 RPM |
Port Size | 3/4" FNPT or BSPT |
Material Options | 316SS, Alloy C, PTFE, PEEK, PPS, Carbon |
Weight | 35 lbs (15.9 kg) |
- Chemical Processing
Safe transfer of acids, bases, solvents, and high-purity reagents - OEM Equipment Integration
Tuned performance for custom skid systems and proprietary equipment - Pharmaceutical and Biotech Manufacturing
Leak-free handling of delicate or reactive compounds - Laboratories and Pilot Plants
Compact size and precise flow control for research and development - Hazardous Material Transfer
Ideal for flammable or toxic fluids in safety-critical environments - Thermal Control Systems
Reliable across cryogenic to high-temperature ranges
